Correas Industriales Estrechas — SPZ, SPA, SPB, SPC, 3V, 5V, 8V
779 medidas disponibles · Stock permanente · Envíos a todo el país
Buscador de Correas Industriales
Encontrá tu correa por código o perfil en todas las familias industriales.
Ingresá un código para buscar.
La presencia en el catálogo no confirma stock. Consultá disponibilidad y la variante que necesitás.
Recorrer este catálogo por perfil:
Otros catálogos:Correas en V ClásicasCorreas PowerBand MulticanalCorreas Hexagonales AA BB CCCorreas Poly-V Micro-V PJ PK PL TB2
Perfil SPZ
Ancho 10 mmEspesor 8 mm
| Código | Largo Primitivo (Lp) | Ancho | Acción |
|---|---|---|---|
| SPZ-487 | 487 mm | 10 mm | |
| SPZ-512 | 512 mm | 10 mm | |
| SPZ-562 | 562 mm | 10 mm | |
| SPZ-587 | 587 mm | 10 mm | |
| SPZ-600 | 600 mm | 10 mm | |
| SPZ-612 | 612 mm | 10 mm | |
| SPZ-630 | 630 mm | 10 mm | |
| SPZ-632 | 632 mm | 10 mm | |
| SPZ-637 | 637 mm | 10 mm | |
| SPZ-662 | 662 mm | 10 mm | |
| SPZ-670 | 670 mm | 10 mm | |
| SPZ-687 | 687 mm | 10 mm | |
| SPZ-700 | 700 mm | 10 mm | |
| SPZ-710 | 710 mm | 10 mm | |
| SPZ-722 | 722 mm | 10 mm | |
| SPZ-737 | 737 mm | 10 mm | |
| SPZ-750 | 750 mm | 10 mm | |
| SPZ-785 | 785 mm | 10 mm | |
| SPZ-787 | 787 mm | 10 mm | |
| SPZ-800 | 800 mm | 10 mm | |
| SPZ-812 | 812 mm | 10 mm | |
| SPZ-837 | 837 mm | 10 mm | |
| SPZ-850 | 850 mm | 10 mm | |
| SPZ-865 | 865 mm | 10 mm | |
| SPZ-875 | 875 mm | 10 mm | |
| SPZ-887 | 887 mm | 10 mm | |
| SPZ-890 | 890 mm | 10 mm | |
| SPZ-900 | 900 mm | 10 mm | |
| SPZ-915 | 915 mm | 10 mm | |
| SPZ-925 | 925 mm | 10 mm | |
| SPZ-937 | 937 mm | 10 mm | |
| SPZ-940 | 940 mm | 10 mm | |
| SPZ-950 | 950 mm | 10 mm | |
| SPZ-962 | 962 mm | 10 mm | |
| SPZ-987 | 987 mm | 10 mm | |
| SPZ-1000 | 1.000 mm | 10 mm | |
| SPZ-1010 | 1.010 mm | 10 mm | |
| SPZ-1030 | 1.030 mm | 10 mm | |
| SPZ-1035 | 1.035 mm | 10 mm | |
| SPZ-1040 | 1.040 mm | 10 mm | |
| SPZ-1050 | 1.050 mm | 10 mm | |
| SPZ-1060 | 1.060 mm | 10 mm | |
| SPZ-1075 | 1.075 mm | 10 mm | |
| SPZ-1087 | 1.087 mm | 10 mm | |
| SPZ-1090 | 1.090 mm | 10 mm | |
| SPZ-1100 | 1.100 mm | 10 mm | |
| SPZ-1112 | 1.112 mm | 10 mm | |
| SPZ-1120 | 1.120 mm | 10 mm | |
| SPZ-1125 | 1.125 mm | 10 mm | |
| SPZ-1137 | 1.137 mm | 10 mm | |
| SPZ-1140 | 1.140 mm | 10 mm | |
| SPZ-1150 | 1.150 mm | 10 mm | |
| SPZ-1162 | 1.162 mm | 10 mm | |
| SPZ-1175 | 1.175 mm | 10 mm | |
| SPZ-1180 | 1.180 mm | 10 mm | |
| SPZ-1187 | 1.187 mm | 10 mm | |
| SPZ-1200 | 1.200 mm | 10 mm | |
| SPZ-1202 | 1.202 mm | 10 mm | |
| SPZ-1212 | 1.212 mm | 10 mm | |
| SPZ-1225 | 1.225 mm | 10 mm | |
| SPZ-1232 | 1.232 mm | 10 mm | |
| SPZ-1237 | 1.237 mm | 10 mm | |
| SPZ-1250 | 1.250 mm | 10 mm | |
| SPZ-1270 | 1.270 mm | 10 mm | |
| SPZ-1275 | 1.275 mm | 10 mm | |
| SPZ-1280 | 1.280 mm | 10 mm | |
| SPZ-1287 | 1.287 mm | 10 mm | |
| SPZ-1300 | 1.300 mm | 10 mm | |
| SPZ-1320 | 1.320 mm | 10 mm | |
| SPZ-1325 | 1.325 mm | 10 mm | |
| SPZ-1337 | 1.337 mm | 10 mm | |
| SPZ-1340 | 1.340 mm | 10 mm | |
| SPZ-1348 | 1.348 mm | 10 mm | |
| SPZ-1350 | 1.350 mm | 10 mm | |
| SPZ-1358 | 1.358 mm | 10 mm | |
| SPZ-1375 | 1.375 mm | 10 mm | |
| SPZ-1387 | 1.387 mm | 10 mm | |
| SPZ-1400 | 1.400 mm | 10 mm | |
| SPZ-1420 | 1.420 mm | 10 mm | |
| SPZ-1425 | 1.425 mm | 10 mm | |
| SPZ-1437 | 1.437 mm | 10 mm | |
| SPZ-1450 | 1.450 mm | 10 mm | |
| SPZ-1457 | 1.457 mm | 10 mm | |
| SPZ-1462 | 1.462 mm | 10 mm | |
| SPZ-1470 | 1.470 mm | 10 mm | |
| SPZ-1475 | 1.475 mm | 10 mm | |
| SPZ-1485 | 1.485 mm | 10 mm | |
| SPZ-1500 | 1.500 mm | 10 mm | |
| SPZ-1520 | 1.520 mm | 10 mm | |
| SPZ-1530 | 1.530 mm | 10 mm | |
| SPZ-1537 | 1.537 mm | 10 mm | |
| SPZ-1560 | 1.560 mm | 10 mm | |
| SPZ-1587 | 1.587 mm | 10 mm | |
| SPZ-1600 | 1.600 mm | 10 mm | |
| SPZ-1612 | 1.612 mm | 10 mm | |
| SPZ-1625 | 1.625 mm | 10 mm | |
| SPZ-1637 | 1.637 mm | 10 mm | |
| SPZ-1650 | 1.650 mm | 10 mm | |
| SPZ-1662 | 1.662 mm | 10 mm | |
| SPZ-1675 | 1.675 mm | 10 mm | |
| SPZ-1687 | 1.687 mm | 10 mm | |
| SPZ-1700 | 1.700 mm | 10 mm | |
| SPZ-1737 | 1.737 mm | 10 mm | |
| SPZ-1750 | 1.750 mm | 10 mm | |
| SPZ-1762 | 1.762 mm | 10 mm | |
| SPZ-1787 | 1.787 mm | 10 mm | |
| SPZ-1800 | 1.800 mm | 10 mm | |
| SPZ-1812 | 1.812 mm | 10 mm | |
| SPZ-1818 | 1.818 mm | 10 mm | |
| SPZ-1837 | 1.837 mm | 10 mm | |
| SPZ-1850 | 1.850 mm | 10 mm | |
| SPZ-1862 | 1.862 mm | 10 mm | |
| SPZ-1875 | 1.875 mm | 10 mm | |
| SPZ-1900 | 1.900 mm | 10 mm | |
| SPZ-1937 | 1.937 mm | 10 mm | |
| SPZ-1962 | 1.962 mm | 10 mm | |
| SPZ-2000 | 2.000 mm | 10 mm | |
| SPZ-2030 | 2.030 mm | 10 mm | |
| SPZ-2037 | 2.037 mm | 10 mm | |
| SPZ-2120 | 2.120 mm | 10 mm | |
| SPZ-2137 | 2.137 mm | 10 mm | |
| SPZ-2160 | 2.160 mm | 10 mm | |
| SPZ-2187 | 2.187 mm | 10 mm | |
| SPZ-2200 | 2.200 mm | 10 mm | |
| SPZ-2240 | 2.240 mm | 10 mm | |
| SPZ-2280 | 2.280 mm | 10 mm | |
| SPZ-2360 | 2.360 mm | 10 mm | |
| SPZ-2410 | 2.410 mm | 10 mm | |
| SPZ-2430 | 2.430 mm | 10 mm | |
| SPZ-2500 | 2.500 mm | 10 mm | |
| SPZ-2540 | 2.540 mm | 10 mm | |
| SPZ-2650 | 2.650 mm | 10 mm | |
| SPZ-2800 | 2.800 mm | 10 mm | |
| SPZ-3150 | 3.150 mm | 10 mm | |
| SPZ-3550 | 3.550 mm | 10 mm | |
| SPZ-3710 | 3.710 mm | 10 mm |

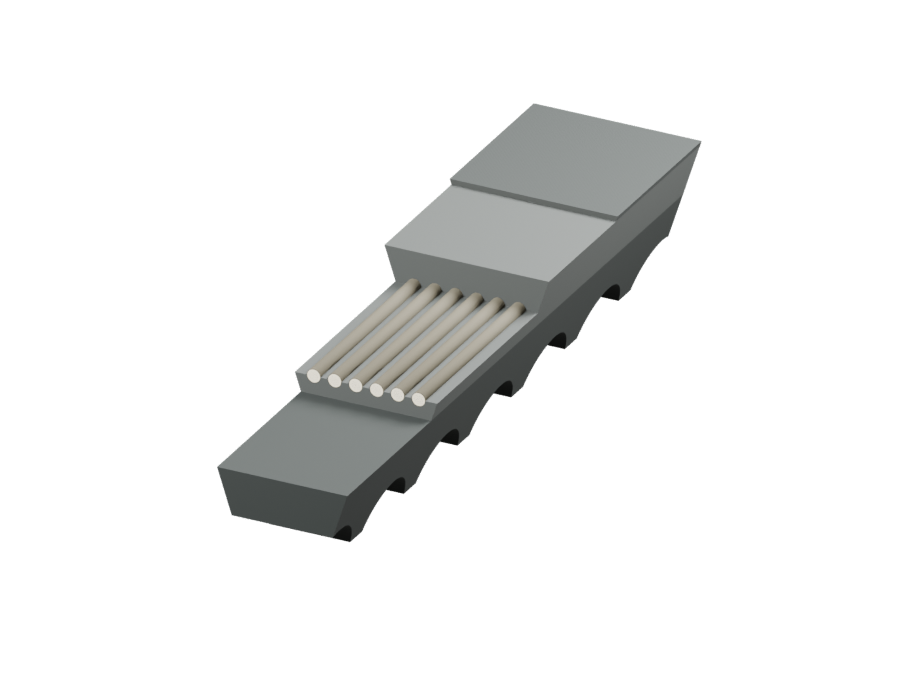

Perfil XPZ
Ancho 10 mmEspesor 8 mm
| Código | Largo Primitivo (Lp) | Ancho | Acción |
|---|---|---|---|
| XPZ-587 | 587 mm | 10 mm | |
| XPZ-612 | 612 mm | 10 mm | |
| XPZ-630 | 630 mm | 10 mm | |
| XPZ-637 | 637 mm | 10 mm | |
| XPZ-662 | 662 mm | 10 mm | |
| XPZ-670 | 670 mm | 10 mm | |
| XPZ-687 | 687 mm | 10 mm | |
| XPZ-710 | 710 mm | 10 mm | |
| XPZ-735 | 735 mm | 10 mm | |
| XPZ-737 | 737 mm | 10 mm | |
| XPZ-750 | 750 mm | 10 mm | |
| XPZ-795 | 795 mm | 10 mm | |
| XPZ-825 | 825 mm | 10 mm | |
| XPZ-937 | 937 mm | 10 mm | |
| XPZ-950 | 950 mm | 10 mm | |
| XPZ-1000 | 1.000 mm | 10 mm | |
| XPZ-1037 | 1.037 mm | 10 mm | |
| XPZ-1060 | 1.060 mm | 10 mm | |
| XPZ-1077 | 1.077 mm | 10 mm | |
| XPZ-1087 | 1.087 mm | 10 mm | |
| XPZ-1130 | 1.130 mm | 10 mm | |
| XPZ-1162 | 1.162 mm | 10 mm | |
| XPZ-1175 | 1.175 mm | 10 mm | |
| XPZ-1180 | 1.180 mm | 10 mm | |
| XPZ-1237 | 1.237 mm | 10 mm | |
| XPZ-1250 | 1.250 mm | 10 mm | |
| XPZ-1287 | 1.287 mm | 10 mm | |
| XPZ-1337 | 1.337 mm | 10 mm | |
| XPZ-1400 | 1.400 mm | 10 mm | |
| XPZ-1420 | 1.420 mm | 10 mm | |
| XPZ-1487 | 1.487 mm | 10 mm | |
| XPZ-1587 | 1.587 mm | 10 mm | |
| XPZ-1600 | 1.600 mm | 10 mm | |
| XPZ-1637 | 1.637 mm | 10 mm | |
| XPZ-1650 | 1.650 mm | 10 mm | |
| XPZ-1700 | 1.700 mm | 10 mm | |
| XPZ-1787 | 1.787 mm | 10 mm | |
| XPZ-1800 | 1.800 mm | 10 mm | |
| XPZ-1812 | 1.812 mm | 10 mm | |
| XPZ-1937 | 1.937 mm | 10 mm | |
| XPZ-2000 | 2.000 mm | 10 mm | |
| XPZ-2112 | 2.112 mm | 10 mm | |
| XPZ-2120 | 2.120 mm | 10 mm | |
| XPZ-2360 | 2.360 mm | 10 mm |

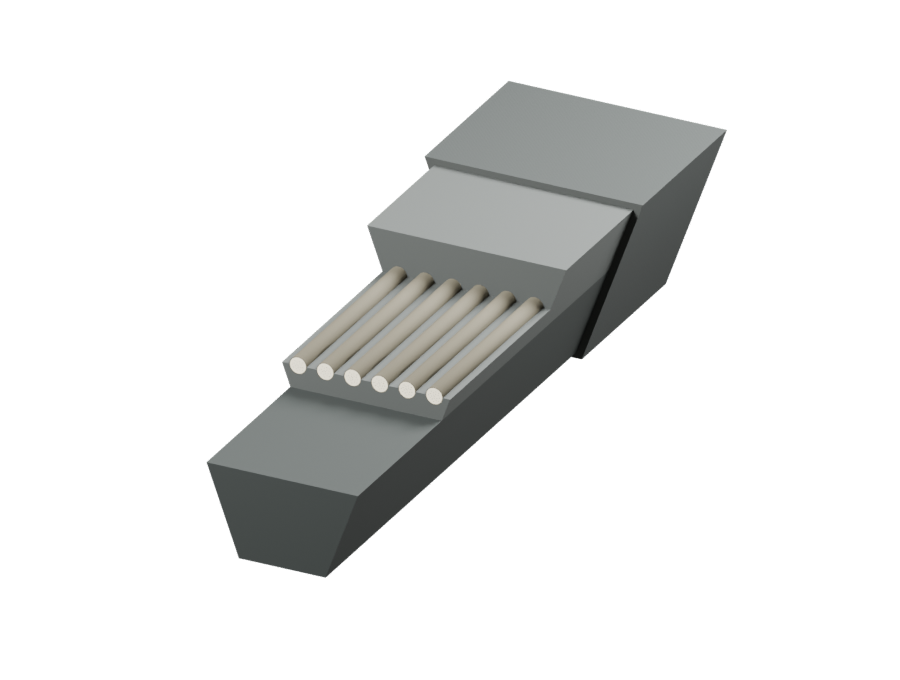

Perfil SPA
Ancho 13 mmEspesor 10 mm
| Código | Largo Primitivo (Lp) | Ancho | Acción |
|---|---|---|---|
| SPA-725 | 725 mm | 13 mm | |
| SPA-750 | 750 mm | 13 mm | |
| SPA-757 | 757 mm | 13 mm | |
| SPA-782 | 782 mm | 13 mm | |
| SPA-800 | 800 mm | 13 mm | |
| SPA-832 | 832 mm | 13 mm | |
| SPA-850 | 850 mm | 13 mm | |
| SPA-857 | 857 mm | 13 mm | |
| SPA-875 | 875 mm | 13 mm | |
| SPA-900 | 900 mm | 13 mm | |
| SPA-925 | 925 mm | 13 mm | |
| SPA-950 | 950 mm | 13 mm | |
| SPA-975 | 975 mm | 13 mm | |
| SPA-980 | 980 mm | 13 mm | |
| SPA-1000 | 1.000 mm | 13 mm | |
| SPA-1007 | 1.007 mm | 13 mm | |
| SPA-1030 | 1.030 mm | 13 mm | |
| SPA-1032 | 1.032 mm | 13 mm | |
| SPA-1060 | 1.060 mm | 13 mm | |
| SPA-1080 | 1.080 mm | 13 mm | |
| SPA-1082 | 1.082 mm | 13 mm | |
| SPA-1120 | 1.120 mm | 13 mm | |
| SPA-1132 | 1.132 mm | 13 mm | |
| SPA-1150 | 1.150 mm | 13 mm | |
| SPA-1157 | 1.157 mm | 13 mm | |
| SPA-1175 | 1.175 mm | 13 mm | |
| SPA-1180 | 1.180 mm | 13 mm | |
| SPA-1200 | 1.200 mm | 13 mm | |
| SPA-1202 | 1.202 mm | 13 mm | |
| SPA-1207 | 1.207 mm | 13 mm | |
| SPA-1220 | 1.220 mm | 13 mm | |
| SPA-1232 | 1.232 mm | 13 mm | |
| SPA-1250 | 1.250 mm | 13 mm | |
| SPA-1272 | 1.272 mm | 13 mm | |
| SPA-1275 | 1.275 mm | 13 mm | |
| SPA-1280 | 1.280 mm | 13 mm | |
| SPA-1282 | 1.282 mm | 13 mm | |
| SPA-1300 | 1.300 mm | 13 mm | |
| SPA-1307 | 1.307 mm | 13 mm | |
| SPA-1320 | 1.320 mm | 13 mm | |
| SPA-1357 | 1.357 mm | 13 mm | |
| SPA-1360 | 1.360 mm | 13 mm | |
| SPA-1375 | 1.375 mm | 13 mm | |
| SPA-1382 | 1.382 mm | 13 mm | |
| SPA-1400 | 1.400 mm | 13 mm | |
| SPA-1418 | 1.418 mm | 13 mm | |
| SPA-1423 | 1.423 mm | 13 mm | |
| SPA-1425 | 1.425 mm | 13 mm | |
| SPA-1432 | 1.432 mm | 13 mm | |
| SPA-1437 | 1.437 mm | 13 mm | |
| SPA-1450 | 1.450 mm | 13 mm | |
| SPA-1457 | 1.457 mm | 13 mm | |
| SPA-1475 | 1.475 mm | 13 mm | |
| SPA-1482 | 1.482 mm | 13 mm | |
| SPA-1487 | 1.487 mm | 13 mm | |
| SPA-1500 | 1.500 mm | 13 mm | |
| SPA-1507 | 1.507 mm | 13 mm | |
| SPA-1510 | 1.510 mm | 13 mm | |
| SPA-1530 | 1.530 mm | 13 mm | |
| SPA-1532 | 1.532 mm | 13 mm | |
| SPA-1550 | 1.550 mm | 13 mm | |
| SPA-1557 | 1.557 mm | 13 mm | |
| SPA-1575 | 1.575 mm | 13 mm | |
| SPA-1582 | 1.582 mm | 13 mm | |
| SPA-1600 | 1.600 mm | 13 mm | |
| SPA-1618 | 1.618 mm | 13 mm | |
| SPA-1625 | 1.625 mm | 13 mm | |
| SPA-1632 | 1.632 mm | 13 mm | |
| SPA-1650 | 1.650 mm | 13 mm | |
| SPA-1657 | 1.657 mm | 13 mm | |
| SPA-1682 | 1.682 mm | 13 mm | |
| SPA-1687 | 1.687 mm | 13 mm | |
| SPA-1700 | 1.700 mm | 13 mm | |
| SPA-1732 | 1.732 mm | 13 mm | |
| SPA-1750 | 1.750 mm | 13 mm | |
| SPA-1756 | 1.756 mm | 13 mm | |
| SPA-1757 | 1.757 mm | 13 mm | |
| SPA-1780 | 1.780 mm | 13 mm | |
| SPA-1782 | 1.782 mm | 13 mm | |
| SPA-1800 | 1.800 mm | 13 mm | |
| SPA-1832 | 1.832 mm | 13 mm | |
| SPA-1847 | 1.847 mm | 13 mm | |
| SPA-1850 | 1.850 mm | 13 mm | |
| SPA-1857 | 1.857 mm | 13 mm | |
| SPA-1882 | 1.882 mm | 13 mm | |
| SPA-1900 | 1.900 mm | 13 mm | |
| SPA-1907 | 1.907 mm | 13 mm | |
| SPA-1925 | 1.925 mm | 13 mm | |
| SPA-1932 | 1.932 mm | 13 mm | |
| SPA-1943 | 1.943 mm | 13 mm | |
| SPA-1950 | 1.950 mm | 13 mm | |
| SPA-1957 | 1.957 mm | 13 mm | |
| SPA-1982 | 1.982 mm | 13 mm | |
| SPA-2000 | 2.000 mm | 13 mm | |
| SPA-2030 | 2.030 mm | 13 mm | |
| SPA-2032 | 2.032 mm | 13 mm | |
| SPA-2050 | 2.050 mm | 13 mm | |
| SPA-2060 | 2.060 mm | 13 mm | |
| SPA-2082 | 2.082 mm | 13 mm | |
| SPA-2120 | 2.120 mm | 13 mm | |
| SPA-2128 | 2.128 mm | 13 mm | |
| SPA-2132 | 2.132 mm | 13 mm | |
| SPA-2182 | 2.182 mm | 13 mm | |
| SPA-2200 | 2.200 mm | 13 mm | |
| SPA-2207 | 2.207 mm | 13 mm | |
| SPA-2232 | 2.232 mm | 13 mm | |
| SPA-2240 | 2.240 mm | 13 mm | |
| SPA-2282 | 2.282 mm | 13 mm | |
| SPA-2300 | 2.300 mm | 13 mm | |
| SPA-2310 | 2.310 mm | 13 mm | |
| SPA-2360 | 2.360 mm | 13 mm | |
| SPA-2382 | 2.382 mm | 13 mm | |
| SPA-2430 | 2.430 mm | 13 mm | |
| SPA-2432 | 2.432 mm | 13 mm | |
| SPA-2482 | 2.482 mm | 13 mm | |
| SPA-2500 | 2.500 mm | 13 mm | |
| SPA-2532 | 2.532 mm | 13 mm | |
| SPA-2550 | 2.550 mm | 13 mm | |
| SPA-2580 | 2.580 mm | 13 mm | |
| SPA-2582 | 2.582 mm | 13 mm | |
| SPA-2607 | 2.607 mm | 13 mm | |
| SPA-2632 | 2.632 mm | 13 mm | |
| SPA-2647 | 2.647 mm | 13 mm | |
| SPA-2650 | 2.650 mm | 13 mm | |
| SPA-2660 | 2.660 mm | 13 mm | |
| SPA-2700 | 2.700 mm | 13 mm | |
| SPA-2720 | 2.720 mm | 13 mm | |
| SPA-2732 | 2.732 mm | 13 mm | |
| SPA-2750 | 2.750 mm | 13 mm | |
| SPA-2782 | 2.782 mm | 13 mm | |
| SPA-2800 | 2.800 mm | 13 mm | |
| SPA-2832 | 2.832 mm | 13 mm | |
| SPA-2847 | 2.847 mm | 13 mm | |
| SPA-2882 | 2.882 mm | 13 mm | |
| SPA-2890 | 2.890 mm | 13 mm | |
| SPA-2900 | 2.900 mm | 13 mm | |
| SPA-2950 | 2.950 mm | 13 mm | |
| SPA-3000 | 3.000 mm | 13 mm | |
| SPA-3050 | 3.050 mm | 13 mm | |
| SPA-3100 | 3.100 mm | 13 mm | |
| SPA-3150 | 3.150 mm | 13 mm | |
| SPA-3159 | 3.159 mm | 13 mm | |
| SPA-3182 | 3.182 mm | 13 mm | |
| SPA-3282 | 3.282 mm | 13 mm | |
| SPA-3350 | 3.350 mm | 13 mm | |
| SPA-3382 | 3.382 mm | 13 mm | |
| SPA-3450 | 3.450 mm | 13 mm | |
| SPA-3482 | 3.482 mm | 13 mm | |
| SPA-3500 | 3.500 mm | 13 mm | |
| SPA-3550 | 3.550 mm | 13 mm | |
| SPA-3750 | 3.750 mm | 13 mm | |
| SPA-4000 | 4.000 mm | 13 mm | |
| SPA-4120 | 4.120 mm | 13 mm | |
| SPA-4250 | 4.250 mm | 13 mm | |
| SPA-4500 | 4.500 mm | 13 mm | |
| SPA-4750 | 4.750 mm | 13 mm | |
| SPA-5380 | 5.380 mm | 13 mm | |
| SPA-5770 | 5.770 mm | 13 mm |
Perfil XPA
Ancho 13 mmEspesor 10 mm
| Código | Largo Primitivo (Lp) | Ancho | Acción |
|---|---|---|---|
| XPA-932 | 932 mm | 13 mm | |
| XPA-935 | 935 mm | 13 mm | |
| XPA-940 | 940 mm | 13 mm | |
| XPA-950 | 950 mm | 13 mm | |
| XPA-1000 | 1.000 mm | 13 mm | |
| XPA-1060 | 1.060 mm | 13 mm | |
| XPA-1120 | 1.120 mm | 13 mm | |
| XPA-1132 | 1.132 mm | 13 mm | |
| XPA-1150 | 1.150 mm | 13 mm | |
| XPA-1180 | 1.180 mm | 13 mm | |
| XPA-1232 | 1.232 mm | 13 mm | |
| XPA-1250 | 1.250 mm | 13 mm | |
| XPA-1300 | 1.300 mm | 13 mm | |
| XPA-1320 | 1.320 mm | 13 mm | |
| XPA-1332 | 1.332 mm | 13 mm | |
| XPA-1337 | 1.337 mm | 13 mm | |
| XPA-1350 | 1.350 mm | 13 mm | |
| XPA-1357 | 1.357 mm | 13 mm | |
| XPA-1375 | 1.375 mm | 13 mm | |
| XPA-1382 | 1.382 mm | 13 mm | |
| XPA-1400 | 1.400 mm | 13 mm | |
| XPA-1418 | 1.418 mm | 13 mm | |
| XPA-1425 | 1.425 mm | 13 mm | |
| XPA-1437 | 1.437 mm | 13 mm | |
| XPA-1450 | 1.450 mm | 13 mm | |
| XPA-1457 | 1.457 mm | 13 mm | |
| XPA-1475 | 1.475 mm | 13 mm | |
| XPA-1482 | 1.482 mm | 13 mm | |
| XPA-1500 | 1.500 mm | 13 mm | |
| XPA-1532 | 1.532 mm | 13 mm | |
| XPA-1550 | 1.550 mm | 13 mm | |
| XPA-1557 | 1.557 mm | 13 mm | |
| XPA-1560 | 1.560 mm | 13 mm | |
| XPA-1600 | 1.600 mm | 13 mm | |
| XPA-1630 | 1.630 mm | 13 mm | |
| XPA-1632 | 1.632 mm | 13 mm | |
| XPA-1650 | 1.650 mm | 13 mm | |
| XPA-1657 | 1.657 mm | 13 mm | |
| XPA-1700 | 1.700 mm | 13 mm | |
| XPA-1732 | 1.732 mm | 13 mm | |
| XPA-1760 | 1.760 mm | 13 mm | |
| XPA-1832 | 1.832 mm | 13 mm | |
| XPA-1900 | 1.900 mm | 13 mm | |
| XPA-1960 | 1.960 mm | 13 mm | |
| XPA-2000 | 2.000 mm | 13 mm | |
| XPA-2082 | 2.082 mm | 13 mm | |
| XPA-2120 | 2.120 mm | 13 mm | |
| XPA-2182 | 2.182 mm | 13 mm | |
| XPA-2240 | 2.240 mm | 13 mm | |
| XPA-2282 | 2.282 mm | 13 mm | |
| XPA-2360 | 2.360 mm | 13 mm | |
| XPA-2650 | 2.650 mm | 13 mm | |
| XPA-2800 | 2.800 mm | 13 mm | |
| XPA-2847 | 2.847 mm | 13 mm | |
| XPA-3000 | 3.000 mm | 13 mm | |
| XPA-3482 | 3.482 mm | 13 mm | |
| XPA-3750 | 3.750 mm | 13 mm |
Perfil SPB
Ancho 17 mmEspesor 14 mm
| Código | Largo Primitivo (Lp) | Ancho | Acción |
|---|---|---|---|
| SPB-1220 | 1.220 mm | 17 mm | |
| SPB-1250 | 1.250 mm | 17 mm | |
| SPB-1260 | 1.260 mm | 17 mm | |
| SPB-1280 | 1.280 mm | 17 mm | |
| SPB-1320 | 1.320 mm | 17 mm | |
| SPB-1340 | 1.340 mm | 17 mm | |
| SPB-1360 | 1.360 mm | 17 mm | |
| SPB-1400 | 1.400 mm | 17 mm | |
| SPB-1410 | 1.410 mm | 17 mm | |
| SPB-1440 | 1.440 mm | 17 mm | |
| SPB-1500 | 1.500 mm | 17 mm | |
| SPB-1510 | 1.510 mm | 17 mm | |
| SPB-1530 | 1.530 mm | 17 mm | |
| SPB-1550 | 1.550 mm | 17 mm | |
| SPB-1560 | 1.560 mm | 17 mm | |
| SPB-1600 | 1.600 mm | 17 mm | |
| SPB-1650 | 1.650 mm | 17 mm | |
| SPB-1670 | 1.670 mm | 17 mm | |
| SPB-1680 | 1.680 mm | 17 mm | |
| SPB-1700 | 1.700 mm | 17 mm | |
| SPB-1750 | 1.750 mm | 17 mm | |
| SPB-1778 | 1.778 mm | 17 mm | |
| SPB-1780 | 1.780 mm | 17 mm | |
| SPB-1800 | 1.800 mm | 17 mm | |
| SPB-1850 | 1.850 mm | 17 mm | |
| SPB-1860 | 1.860 mm | 17 mm | |
| SPB-1875 | 1.875 mm | 17 mm | |
| SPB-1900 | 1.900 mm | 17 mm | |
| SPB-1950 | 1.950 mm | 17 mm | |
| SPB-2000 | 2.000 mm | 17 mm | |
| SPB-2020 | 2.020 mm | 17 mm | |
| SPB-2030 | 2.030 mm | 17 mm | |
| SPB-2060 | 2.060 mm | 17 mm | |
| SPB-2120 | 2.120 mm | 17 mm | |
| SPB-2150 | 2.150 mm | 17 mm | |
| SPB-2180 | 2.180 mm | 17 mm | |
| SPB-2182 | 2.182 mm | 17 mm | |
| SPB-2230 | 2.230 mm | 17 mm | |
| SPB-2240 | 2.240 mm | 17 mm | |
| SPB-2280 | 2.280 mm | 17 mm | |
| SPB-2360 | 2.360 mm | 17 mm | |
| SPB-2400 | 2.400 mm | 17 mm | |
| SPB-2410 | 2.410 mm | 17 mm | |
| SPB-2450 | 2.450 mm | 17 mm | |
| SPB-2500 | 2.500 mm | 17 mm | |
| SPB-2530 | 2.530 mm | 17 mm | |
| SPB-2540 | 2.540 mm | 17 mm | |
| SPB-2580 | 2.580 mm | 17 mm | |
| SPB-2600 | 2.600 mm | 17 mm | |
| SPB-2630 | 2.630 mm | 17 mm | |
| SPB-2650 | 2.650 mm | 17 mm | |
| SPB-2680 | 2.680 mm | 17 mm | |
| SPB-2720 | 2.720 mm | 17 mm | |
| SPB-2750 | 2.750 mm | 17 mm | |
| SPB-2800 | 2.800 mm | 17 mm | |
| SPB-2840 | 2.840 mm | 17 mm | |
| SPB-2850 | 2.850 mm | 17 mm | |
| SPB-2860 | 2.860 mm | 17 mm | |
| SPB-2900 | 2.900 mm | 17 mm | |
| SPB-2950 | 2.950 mm | 17 mm | |
| SPB-3000 | 3.000 mm | 17 mm | |
| SPB-3070 | 3.070 mm | 17 mm | |
| SPB-3080 | 3.080 mm | 17 mm | |
| SPB-3150 | 3.150 mm | 17 mm | |
| SPB-3170 | 3.170 mm | 17 mm | |
| SPB-3250 | 3.250 mm | 17 mm | |
| SPB-3350 | 3.350 mm | 17 mm | |
| SPB-3550 | 3.550 mm | 17 mm | |
| SPB-3650 | 3.650 mm | 17 mm | |
| SPB-3700 | 3.700 mm | 17 mm | |
| SPB-3733 | 3.733 mm | 17 mm | |
| SPB-3750 | 3.750 mm | 17 mm | |
| SPB-3800 | 3.800 mm | 17 mm | |
| SPB-3850 | 3.850 mm | 17 mm | |
| SPB-3900 | 3.900 mm | 17 mm | |
| SPB-3950 | 3.950 mm | 17 mm | |
| SPB-4000 | 4.000 mm | 17 mm | |
| SPB-4060 | 4.060 mm | 17 mm | |
| SPB-4120 | 4.120 mm | 17 mm | |
| SPB-4250 | 4.250 mm | 17 mm | |
| SPB-4300 | 4.300 mm | 17 mm | |
| SPB-4310 | 4.310 mm | 17 mm | |
| SPB-4370 | 4.370 mm | 17 mm | |
| SPB-4500 | 4.500 mm | 17 mm | |
| SPB-4560 | 4.560 mm | 17 mm | |
| SPB-4620 | 4.620 mm | 17 mm | |
| SPB-4750 | 4.750 mm | 17 mm | |
| SPB-4820 | 4.820 mm | 17 mm | |
| SPB-5000 | 5.000 mm | 17 mm | |
| SPB-5070 | 5.070 mm | 17 mm | |
| SPB-5200 | 5.200 mm | 17 mm | |
| SPB-5300 | 5.300 mm | 17 mm | |
| SPB-5600 | 5.600 mm | 17 mm | |
| SPB-6000 | 6.000 mm | 17 mm | |
| SPB-6300 | 6.300 mm | 17 mm | |
| SPB-6700 | 6.700 mm | 17 mm | |
| SPB-7100 | 7.100 mm | 17 mm | |
| SPB-7500 | 7.500 mm | 17 mm | |
| SPB-8000 | 8.000 mm | 17 mm |
Perfil XPB
Ancho 17 mmEspesor 14 mm
| Código | Largo Primitivo (Lp) | Ancho | Acción |
|---|---|---|---|
| XPB-1320 | 1.320 mm | 17 mm | |
| XPB-1337 | 1.337 mm | 17 mm | |
| XPB-1400 | 1.400 mm | 17 mm | |
| XPB-1500 | 1.500 mm | 17 mm | |
| XPB-1600 | 1.600 mm | 17 mm | |
| XPB-1800 | 1.800 mm | 17 mm | |
| XPB-1827 | 1.827 mm | 17 mm | |
| XPB-1900 | 1.900 mm | 17 mm | |
| XPB-1950 | 1.950 mm | 17 mm | |
| XPB-2000 | 2.000 mm | 17 mm | |
| XPB-2120 | 2.120 mm | 17 mm | |
| XPB-2180 | 2.180 mm | 17 mm | |
| XPB-2240 | 2.240 mm | 17 mm | |
| XPB-2360 | 2.360 mm | 17 mm | |
| XPB-2400 | 2.400 mm | 17 mm | |
| XPB-2800 | 2.800 mm | 17 mm | |
| XPB-2900 | 2.900 mm | 17 mm | |
| XPB-2950 | 2.950 mm | 17 mm | |
| XPB-3000 | 3.000 mm | 17 mm | |
| XPB-3550 | 3.550 mm | 17 mm | |
| XPB-3750 | 3.750 mm | 17 mm | |
| XPB-4000 | 4.000 mm | 17 mm | |
| XPB-4500 | 4.500 mm | 17 mm | |
| XPB-5300 | 5.300 mm | 17 mm |
Perfil SPC
Ancho 22 mmEspesor 18 mm
| Código | Largo Primitivo (Lp) | Ancho | Acción |
|---|---|---|---|
| SPC-2000 | 2.000 mm | 22 mm | |
| SPC-2120 | 2.120 mm | 22 mm | |
| SPC-2218 | 2.218 mm | 22 mm | |
| SPC-2240 | 2.240 mm | 22 mm | |
| SPC-2250 | 2.250 mm | 22 mm | |
| SPC-2360 | 2.360 mm | 22 mm | |
| SPC-2500 | 2.500 mm | 22 mm | |
| SPC-2650 | 2.650 mm | 22 mm | |
| SPC-2700 | 2.700 mm | 22 mm | |
| SPC-2800 | 2.800 mm | 22 mm | |
| SPC-3000 | 3.000 mm | 22 mm | |
| SPC-3150 | 3.150 mm | 22 mm | |
| SPC-3250 | 3.250 mm | 22 mm | |
| SPC-3350 | 3.350 mm | 22 mm | |
| SPC-3550 | 3.550 mm | 22 mm | |
| SPC-3750 | 3.750 mm | 22 mm | |
| SPC-4000 | 4.000 mm | 22 mm | |
| SPC-4150 | 4.150 mm | 22 mm | |
| SPC-4250 | 4.250 mm | 22 mm | |
| SPC-4500 | 4.500 mm | 22 mm | |
| SPC-4750 | 4.750 mm | 22 mm | |
| SPC-5000 | 5.000 mm | 22 mm | |
| SPC-5300 | 5.300 mm | 22 mm | |
| SPC-5350 | 5.350 mm | 22 mm | |
| SPC-5400 | 5.400 mm | 22 mm | |
| SPC-5480 | 5.480 mm | 22 mm | |
| SPC-5600 | 5.600 mm | 22 mm | |
| SPC-5700 | 5.700 mm | 22 mm | |
| SPC-6000 | 6.000 mm | 22 mm | |
| SPC-6300 | 6.300 mm | 22 mm | |
| SPC-6350 | 6.350 mm | 22 mm | |
| SPC-6700 | 6.700 mm | 22 mm | |
| SPC-6900 | 6.900 mm | 22 mm | |
| SPC-7100 | 7.100 mm | 22 mm | |
| SPC-7500 | 7.500 mm | 22 mm | |
| SPC-7700 | 7.700 mm | 22 mm | |
| SPC-8000 | 8.000 mm | 22 mm | |
| SPC-8500 | 8.500 mm | 22 mm | |
| SPC-9000 | 9.000 mm | 22 mm | |
| SPC-9500 | 9.500 mm | 22 mm |
Perfil XPC
Ancho 22 mmEspesor 18 mm
| Código | Largo Primitivo (Lp) | Ancho | Acción |
|---|---|---|---|
| XPC-2800 | 2.800 mm | 22 mm | |
| XPC-3350 | 3.350 mm | 22 mm | |
| XPC-3550 | 3.550 mm | 22 mm | |
| XPC-4250 | 4.250 mm | 22 mm | |
| XPC-5000 | 5.000 mm | 22 mm | |
| XPC-5300 | 5.300 mm | 22 mm |
Perfil 3V
Ancho 9,5 mmEspesor 8 mm
| Código | Largo Primitivo (Lp) | Ancho | Acción |
|---|---|---|---|
| 3V-0250 | 635 mm | 9,5 mm | |
| 3V-0265 | 673 mm | 9,5 mm | |
| 3V-0276 | 701 mm | 9,5 mm | |
| 3V-0280 | 711 mm | 9,5 mm | |
| 3V-0300 | 762 mm | 9,5 mm | |
| 3V-0315 | 800 mm | 9,5 mm | |
| 3V-0335 | 851 mm | 9,5 mm | |
| 3V-0355 | 902 mm | 9,5 mm | |
| 3V-0360 | 914 mm | 9,5 mm | |
| 3V-0370 | 940 mm | 9,5 mm | |
| 3V-0375 | 952 mm | 9,5 mm | |
| 3V-0400 | 1.016 mm | 9,5 mm | |
| 3V-0425 | 1.080 mm | 9,5 mm | |
| 3V-0450 | 1.143 mm | 9,5 mm | |
| 3V-0475 | 1.206 mm | 9,5 mm | |
| 3V-0500 | 1.270 mm | 9,5 mm | |
| 3V-0510 | 1.295 mm | 9,5 mm | |
| 3V-0530 | 1.346 mm | 9,5 mm | |
| 3V-0560 | 1.422 mm | 9,5 mm | |
| 3V-0575 | 1.460 mm | 9,5 mm | |
| 3V-0580 | 1.473 mm | 9,5 mm | |
| 3V-0600 | 1.524 mm | 9,5 mm | |
| 3V-0630 | 1.600 mm | 9,5 mm | |
| 3V-0635 | 1.613 mm | 9,5 mm | |
| 3V-0670 | 1.702 mm | 9,5 mm | |
| 3V-0680 | 1.727 mm | 9,5 mm | |
| 3V-0700 | 1.778 mm | 9,5 mm | |
| 3V-0710 | 1.803 mm | 9,5 mm | |
| 3V-0740 | 1.880 mm | 9,5 mm | |
| 3V-0750 | 1.905 mm | 9,5 mm | |
| 3V-0800 | 2.032 mm | 9,5 mm | |
| 3V-0850 | 2.159 mm | 9,5 mm | |
| 3V-0900 | 2.286 mm | 9,5 mm | |
| 3V-0950 | 2.413 mm | 9,5 mm | |
| 3V-1000 | 2.540 mm | 9,5 mm | |
| 3V-1030 | 2.616 mm | 9,5 mm | |
| 3V-1060 | 2.692 mm | 9,5 mm | |
| 3V-1080 | 2.743 mm | 9,5 mm | |
| 3V-1120 | 2.845 mm | 9,5 mm | |
| 3V-1130 | 2.870 mm | 9,5 mm | |
| 3V-1140 | 2.896 mm | 9,5 mm | |
| 3V-1180 | 2.997 mm | 9,5 mm | |
| 3V-1250 | 3.175 mm | 9,5 mm | |
| 3V-1320 | 3.353 mm | 9,5 mm | |
| 3V-1400 | 3.556 mm | 9,5 mm | |
| 3V-1500 | 3.810 mm | 9,5 mm | |
| 3V-1530 | 3.886 mm | 9,5 mm | |
| 3V-1600 | 4.064 mm | 9,5 mm |
Perfil 3VX
Ancho 9,5 mmEspesor 8 mm
| Código | Largo Primitivo (Lp) | Ancho | Acción |
|---|---|---|---|
| 3VX-0250 | 635 mm | 9,5 mm | |
| 3VX-0315 | 800 mm | 9,5 mm | |
| 3VX-0335 | 851 mm | 9,5 mm | |
| 3VX-0375 | 952 mm | 9,5 mm | |
| 3VX-0400 | 1.016 mm | 9,5 mm | |
| 3VX-0425 | 1.080 mm | 9,5 mm | |
| 3VX-0450 | 1.143 mm | 9,5 mm | |
| 3VX-0475 | 1.206 mm | 9,5 mm | |
| 3VX-0495 | 1.257 mm | 9,5 mm | |
| 3VX-0500 | 1.270 mm | 9,5 mm | |
| 3VX-0530 | 1.346 mm | 9,5 mm | |
| 3VX-0550 | 1.397 mm | 9,5 mm | |
| 3VX-0560 | 1.422 mm | 9,5 mm | |
| 3VX-0590 | 1.499 mm | 9,5 mm | |
| 3VX-0600 | 1.524 mm | 9,5 mm | |
| 3VX-0630 | 1.600 mm | 9,5 mm | |
| 3VX-0670 | 1.702 mm | 9,5 mm | |
| 3VX-0710 | 1.803 mm | 9,5 mm | |
| 3VX-0750 | 1.905 mm | 9,5 mm | |
| 3VX-0800 | 2.032 mm | 9,5 mm | |
| 3VX-0830 | 2.108 mm | 9,5 mm | |
| 3VX-0850 | 2.159 mm | 9,5 mm | |
| 3VX-0900 | 2.286 mm | 9,5 mm | |
| 3VX-0950 | 2.413 mm | 9,5 mm | |
| 3VX-1000 | 2.540 mm | 9,5 mm | |
| 3VX-1060 | 2.692 mm | 9,5 mm | |
| 3VX-1120 | 2.845 mm | 9,5 mm | |
| 3VX-1180 | 2.997 mm | 9,5 mm | |
| 3VX-1250 | 3.175 mm | 9,5 mm | |
| 3VX-1320 | 3.353 mm | 9,5 mm | |
| 3VX-1500 | 3.810 mm | 9,5 mm | |
| 3VX-1600 | 4.064 mm | 9,5 mm |
Perfil 5V
Ancho 15,5 mmEspesor 13 mm
| Código | Largo Primitivo (Lp) | Ancho | Acción |
|---|---|---|---|
| 5V-0504 | 1.280 mm | 15,5 mm | |
| 5V-0530 | 1.346 mm | 15,5 mm | |
| 5V-0560 | 1.422 mm | 15,5 mm | |
| 5V-0575 | 1.460 mm | 15,5 mm | |
| 5V-0600 | 1.524 mm | 15,5 mm | |
| 5V-0630 | 1.600 mm | 15,5 mm | |
| 5V-0670 | 1.702 mm | 15,5 mm | |
| 5V-0690 | 1.753 mm | 15,5 mm | |
| 5V-0710 | 1.803 mm | 15,5 mm | |
| 5V-0750 | 1.905 mm | 15,5 mm | |
| 5V-0757 | 1.923 mm | 15,5 mm | |
| 5V-0800 | 2.032 mm | 15,5 mm | |
| 5V-0850 | 2.159 mm | 15,5 mm | |
| 5V-0900 | 2.286 mm | 15,5 mm | |
| 5V-0950 | 2.413 mm | 15,5 mm | |
| 5V-1000 | 2.540 mm | 15,5 mm | |
| 5V-1050 | 2.667 mm | 15,5 mm | |
| 5V-1060 | 2.692 mm | 15,5 mm | |
| 5V-1080 | 2.743 mm | 15,5 mm | |
| 5V-1120 | 2.845 mm | 15,5 mm | |
| 5V-1150 | 2.921 mm | 15,5 mm | |
| 5V-1160 | 2.946 mm | 15,5 mm | |
| 5V-1180 | 2.997 mm | 15,5 mm | |
| 5V-1200 | 3.048 mm | 15,5 mm | |
| 5V-1220 | 3.099 mm | 15,5 mm | |
| 5V-1240 | 3.150 mm | 15,5 mm | |
| 5V-1250 | 3.175 mm | 15,5 mm | |
| 5V-1270 | 3.226 mm | 15,5 mm | |
| 5V-1320 | 3.353 mm | 15,5 mm | |
| 5V-1350 | 3.429 mm | 15,5 mm | |
| 5V-1400 | 3.556 mm | 15,5 mm | |
| 5V-1500 | 3.810 mm | 15,5 mm | |
| 5V-1550 | 3.937 mm | 15,5 mm | |
| 5V-1600 | 4.064 mm | 15,5 mm | |
| 5V-1664 | 4.227 mm | 15,5 mm | |
| 5V-1700 | 4.318 mm | 15,5 mm | |
| 5V-1800 | 4.572 mm | 15,5 mm | |
| 5V-1900 | 4.826 mm | 15,5 mm | |
| 5V-2000 | 5.080 mm | 15,5 mm | |
| 5V-2020 | 5.131 mm | 15,5 mm | |
| 5V-2050 | 5.207 mm | 15,5 mm | |
| 5V-2120 | 5.385 mm | 15,5 mm | |
| 5V-2140 | 5.436 mm | 15,5 mm | |
| 5V-2240 | 5.690 mm | 15,5 mm | |
| 5V-2360 | 5.994 mm | 15,5 mm | |
| 5V-2440 | 6.198 mm | 15,5 mm | |
| 5V-2500 | 6.350 mm | 15,5 mm | |
| 5V-2630 | 6.680 mm | 15,5 mm | |
| 5V-2650 | 6.731 mm | 15,5 mm | |
| 5V-2800 | 7.112 mm | 15,5 mm | |
| 5V-3000 | 7.620 mm | 15,5 mm | |
| 5V-3150 | 8.001 mm | 15,5 mm | |
| 5V-3350 | 8.509 mm | 15,5 mm | |
| 5V-3550 | 9.017 mm | 15,5 mm | |
| 5V-3750 | 9.525 mm | 15,5 mm | |
| 5V-4060 | 10.312 mm | 15,5 mm | |
| 5V-4250 | 10.795 mm | 15,5 mm | |
| 5V-5600 | 14.224 mm | 15,5 mm | |
| 5V-6300 | 16.002 mm | 15,5 mm |
Perfil 5VX
Ancho 15,5 mmEspesor 13 mm
| Código | Largo Primitivo (Lp) | Ancho | Acción |
|---|---|---|---|
| 5VX-0500 | 1.270 mm | 15,5 mm | |
| 5VX-0530 | 1.346 mm | 15,5 mm | |
| 5VX-0600 | 1.524 mm | 15,5 mm | |
| 5VX-0630 | 1.600 mm | 15,5 mm | |
| 5VX-0670 | 1.702 mm | 15,5 mm | |
| 5VX-0700 | 1.778 mm | 15,5 mm | |
| 5VX-0710 | 1.803 mm | 15,5 mm | |
| 5VX-0740 | 1.880 mm | 15,5 mm | |
| 5VX-0750 | 1.905 mm | 15,5 mm | |
| 5VX-0800 | 2.032 mm | 15,5 mm | |
| 5VX-0840 | 2.134 mm | 15,5 mm | |
| 5VX-0850 | 2.159 mm | 15,5 mm | |
| 5VX-0860 | 2.184 mm | 15,5 mm | |
| 5VX-0900 | 2.286 mm | 15,5 mm | |
| 5VX-0950 | 2.413 mm | 15,5 mm | |
| 5VX-0970 | 2.464 mm | 15,5 mm | |
| 5VX-1000 | 2.540 mm | 15,5 mm | |
| 5VX-1030 | 2.616 mm | 15,5 mm | |
| 5VX-1060 | 2.692 mm | 15,5 mm | |
| 5VX-1080 | 2.743 mm | 15,5 mm | |
| 5VX-1120 | 2.845 mm | 15,5 mm | |
| 5VX-1150 | 2.921 mm | 15,5 mm | |
| 5VX-1180 | 2.997 mm | 15,5 mm | |
| 5VX-1250 | 3.175 mm | 15,5 mm | |
| 5VX-1320 | 3.353 mm | 15,5 mm | |
| 5VX-1350 | 3.429 mm | 15,5 mm | |
| 5VX-1400 | 3.556 mm | 15,5 mm | |
| 5VX-1500 | 3.810 mm | 15,5 mm | |
| 5VX-1600 | 4.064 mm | 15,5 mm | |
| 5VX-1700 | 4.318 mm | 15,5 mm | |
| 5VX-1800 | 4.572 mm | 15,5 mm | |
| 5VX-1900 | 4.826 mm | 15,5 mm | |
| 5VX-2000 | 5.080 mm | 15,5 mm |
Perfil 8V
Ancho 25 mmEspesor 23 mm
| Código | Largo Primitivo (Lp) | Ancho | Acción |
|---|---|---|---|
| 8V-0940 | 2.388 mm | 25 mm | |
| 8V-0950 | 2.413 mm | 25 mm | |
| 8V-1000 | 2.540 mm | 25 mm | |
| 8V-1060 | 2.692 mm | 25 mm | |
| 8V-1120 | 2.845 mm | 25 mm | |
| 8V-1180 | 2.997 mm | 25 mm | |
| 8V-1230 | 3.124 mm | 25 mm | |
| 8V-1250 | 3.175 mm | 25 mm | |
| 8V-1320 | 3.353 mm | 25 mm | |
| 8V-1400 | 3.556 mm | 25 mm | |
| 8V-1500 | 3.810 mm | 25 mm | |
| 8V-1600 | 4.064 mm | 25 mm | |
| 8V-1700 | 4.318 mm | 25 mm | |
| 8V-1800 | 4.572 mm | 25 mm | |
| 8V-1900 | 4.826 mm | 25 mm | |
| 8V-2000 | 5.080 mm | 25 mm | |
| 8V-2120 | 5.385 mm | 25 mm | |
| 8V-2240 | 5.690 mm | 25 mm | |
| 8V-2250 | 5.715 mm | 25 mm | |
| 8V-2360 | 5.994 mm | 25 mm | |
| 8V-2500 | 6.350 mm | 25 mm | |
| 8V-2650 | 6.731 mm | 25 mm | |
| 8V-2700 | 6.858 mm | 25 mm | |
| 8V-2800 | 7.112 mm | 25 mm | |
| 8V-2880 | 7.315 mm | 25 mm | |
| 8V-3000 | 7.620 mm | 25 mm | |
| 8V-3150 | 8.001 mm | 25 mm | |
| 8V-3350 | 8.509 mm | 25 mm | |
| 8V-3360 | 8.534 mm | 25 mm | |
| 8V-3500 | 8.890 mm | 25 mm | |
| 8V-3550 | 9.017 mm | 25 mm | |
| 8V-3750 | 9.525 mm | 25 mm | |
| 8V-4000 | 10.160 mm | 25 mm | |
| 8V-4250 | 10.795 mm | 25 mm | |
| 8V-4500 | 11.430 mm | 25 mm | |
| 8V-4750 | 12.065 mm | 25 mm | |
| 8V-5300 | 13.462 mm | 25 mm |
Perfil 8VX
Ancho 25 mmEspesor 23 mm
| Código | Largo Primitivo (Lp) | Ancho | Acción |
|---|---|---|---|
| 8VX-1320 | 3.353 mm | 25 mm | |
| 8VX-1400 | 3.556 mm | 25 mm | |
| 8VX-1500 | 3.810 mm | 25 mm | |
| 8VX-1900 | 4.826 mm | 25 mm | |
| 8VX-2360 | 5.994 mm | 25 mm | |
| 8VX-2500 | 6.350 mm | 25 mm |
Las correas estrechas representan una evolución significativa respecto a las clásicas: transmiten entre un 25% y 30% más de potencia en el mismo espacio. Esto se logra gracias a su perfil más angosto y profundo, con un ángulo de flanco de 32° a 40° que mejora la adherencia en la polea. Las series métricas (SPZ, SPA, SPB, SPC) siguen norma DIN/ISO y se miden por largo primitivo (Lp) en milímetros. Las series en pulgadas (3V, 5V, 8V) siguen norma RMA y se miden por largo exterior (La) en décimas de pulgada. Ambas series están disponibles en versiones dentadas (XPZ, XPA, XPB, XPC y 3VX, 5VX, 8VX) que ofrecen mayor flexibilidad en poleas de diámetro reducido.
Medidas más pedidas en correas estrechas
Las medidas que más venden nuestros clientes. Todas con stock permanente y envío a todo el país.
