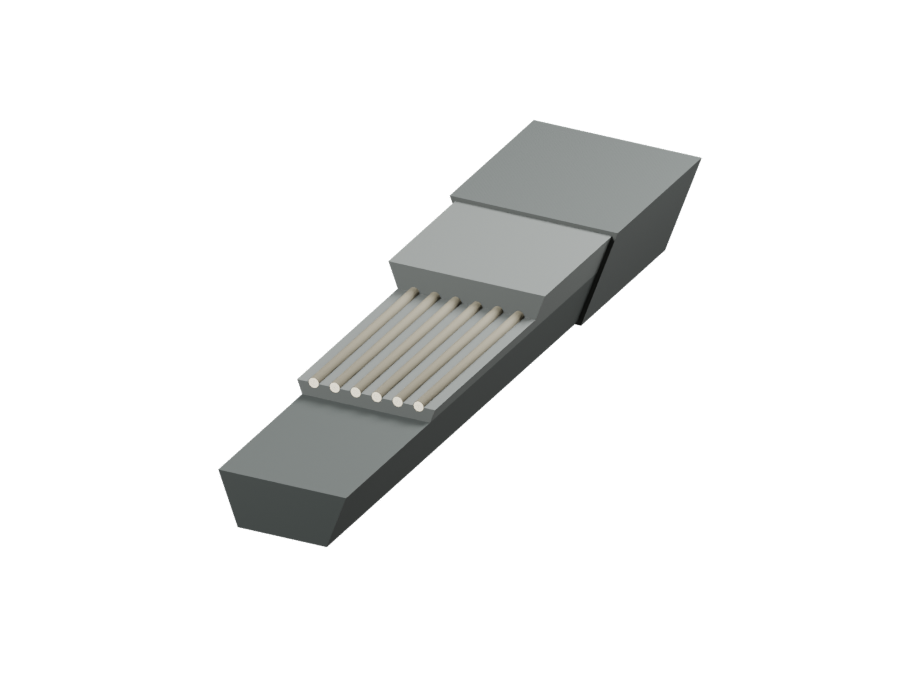

Perfil Z
Ancho 10 mmEspesor 6 mm
| Código | Largo Interior (Li) | Ancho | Acción |
|---|---|---|---|
| Z-15 | 381 mm | 10 mm | |
| Z-16 | 406 mm | 10 mm | |
| Z-17 | 432 mm | 10 mm | |
| Z-18 | 457 mm | 10 mm | |
| Z-19 | 483 mm | 10 mm | |
| Z-20 | 508 mm | 10 mm | |
| Z-21 | 533 mm | 10 mm | |
| Z-22 | 559 mm | 10 mm | |
| Z-23 | 584 mm | 10 mm | |
| Z-24 | 610 mm | 10 mm | |
| Z-25 | 635 mm | 10 mm | |
| Z-26 | 660 mm | 10 mm | |
| Z-27 | 686 mm | 10 mm | |
| Z-28 | 711 mm | 10 mm | |
| Z-29 | 737 mm | 10 mm | |
| Z-30 | 762 mm | 10 mm | |
| Z-31 | 787 mm | 10 mm | |
| Z-32 | 813 mm | 10 mm | |
| Z-33 | 838 mm | 10 mm | |
| Z-34 | 864 mm | 10 mm | |
| Z-35 | 889 mm | 10 mm | |
| Z-36 | 914 mm | 10 mm | |
| Z-37 | 940 mm | 10 mm | |
| Z-38 | 965 mm | 10 mm | |
| Z-39 | 991 mm | 10 mm | |
| Z-40 | 1.016 mm | 10 mm | |
| Z-41 | 1.041 mm | 10 mm | |
| Z-42 | 1.067 mm | 10 mm | |
| Z-43 | 1.092 mm | 10 mm | |
| Z-44 | 1.118 mm | 10 mm | |
| Z-45 | 1.143 mm | 10 mm | |
| Z-46 | 1.168 mm | 10 mm | |
| Z-47 | 1.194 mm | 10 mm | |
| Z-48 | 1.219 mm | 10 mm | |
| Z-49 | 1.245 mm | 10 mm | |
| Z-50 | 1.270 mm | 10 mm | |
| Z-51 | 1.295 mm | 10 mm | |
| Z-52 | 1.321 mm | 10 mm | |
| Z-53 | 1.346 mm | 10 mm | |
| Z-54 | 1.372 mm | 10 mm | |
| Z-55 | 1.397 mm | 10 mm | |
| Z-56 | 1.422 mm | 10 mm | |
| Z-57 | 1.448 mm | 10 mm | |
| Z-58 | 1.473 mm | 10 mm | |
| Z-59 | 1.499 mm | 10 mm | |
| Z-60 | 1.524 mm | 10 mm | |
| Z-61 | 1.549 mm | 10 mm | |
| Z-62 | 1.575 mm | 10 mm | |
| Z-63 | 1.600 mm | 10 mm | |
| Z-64 | 1.626 mm | 10 mm | |
| Z-65 | 1.651 mm | 10 mm | |
| Z-66 | 1.676 mm | 10 mm | |
| Z-67 | 1.702 mm | 10 mm | |
| Z-68 | 1.727 mm | 10 mm | |
| Z-69 | 1.753 mm | 10 mm | |
| Z-70 | 1.778 mm | 10 mm | |
| Z-71 | 1.803 mm | 10 mm |
Perfil A
Ancho 13 mmEspesor 8 mm
| Código | Largo Interior (Li) | Ancho | Acción |
|---|---|---|---|
| A-14 | 356 mm | 13 mm | |
| A-15 | 381 mm | 13 mm | |
| A-16 | 406 mm | 13 mm | |
| A-17 | 432 mm | 13 mm | |
| A-18 | 457 mm | 13 mm | |
| A-19 | 483 mm | 13 mm | |
| A-20 | 508 mm | 13 mm | |
| A-21 | 533 mm | 13 mm | |
| A-22 | 559 mm | 13 mm | |
| A-23 | 584 mm | 13 mm | |
| A-24 | 610 mm | 13 mm | |
| A-25 | 635 mm | 13 mm | |
| A-26 | 660 mm | 13 mm | |
| A-27 | 686 mm | 13 mm | |
| A-28 | 711 mm | 13 mm | |
| A-29 | 737 mm | 13 mm | |
| A-30 | 762 mm | 13 mm | |
| A-31 | 787 mm | 13 mm | |
| A-32 | 813 mm | 13 mm | |
| A-33 | 838 mm | 13 mm | |
| A-34 | 864 mm | 13 mm | |
| A-35 | 889 mm | 13 mm | |
| A-36 | 914 mm | 13 mm | |
| A-37 | 940 mm | 13 mm | |
| A-38 | 965 mm | 13 mm | |
| A-39 | 991 mm | 13 mm | |
| A-40 | 1.016 mm | 13 mm | |
| A-41 | 1.041 mm | 13 mm | |
| A-42 | 1.067 mm | 13 mm | |
| A-43 | 1.092 mm | 13 mm | |
| A-44 | 1.118 mm | 13 mm | |
| A-45 | 1.143 mm | 13 mm | |
| A-46 | 1.168 mm | 13 mm | |
| A-47 | 1.194 mm | 13 mm | |
| A-48 | 1.219 mm | 13 mm | |
| A-49 | 1.245 mm | 13 mm | |
| A-50 | 1.270 mm | 13 mm | |
| A-51 | 1.295 mm | 13 mm | |
| A-52 | 1.321 mm | 13 mm | |
| A-53 | 1.346 mm | 13 mm | |
| A-54 | 1.372 mm | 13 mm | |
| A-55 | 1.397 mm | 13 mm | |
| A-56 | 1.422 mm | 13 mm | |
| A-57 | 1.448 mm | 13 mm | |
| A-58 | 1.473 mm | 13 mm | |
| A-59 | 1.499 mm | 13 mm | |
| A-60 | 1.524 mm | 13 mm | |
| A-61 | 1.549 mm | 13 mm | |
| A-62 | 1.575 mm | 13 mm | |
| A-63 | 1.600 mm | 13 mm | |
| A-64 | 1.626 mm | 13 mm | |
| A-65 | 1.651 mm | 13 mm | |
| A-66 | 1.676 mm | 13 mm | |
| A-67 | 1.702 mm | 13 mm | |
| A-68 | 1.727 mm | 13 mm | |
| A-69 | 1.753 mm | 13 mm | |
| A-70 | 1.778 mm | 13 mm | |
| A-71 | 1.803 mm | 13 mm | |
| A-72 | 1.829 mm | 13 mm | |
| A-73 | 1.854 mm | 13 mm | |
| A-74 | 1.880 mm | 13 mm | |
| A-75 | 1.905 mm | 13 mm | |
| A-76 | 1.930 mm | 13 mm | |
| A-77 | 1.956 mm | 13 mm | |
| A-78 | 1.981 mm | 13 mm | |
| A-79 | 2.007 mm | 13 mm | |
| A-80 | 2.032 mm | 13 mm | |
| A-81 | 2.057 mm | 13 mm | |
| A-82 | 2.083 mm | 13 mm | |
| A-83 | 2.108 mm | 13 mm | |
| A-84 | 2.134 mm | 13 mm | |
| A-85 | 2.159 mm | 13 mm | |
| A-86 | 2.184 mm | 13 mm | |
| A-87 | 2.210 mm | 13 mm | |
| A-88 | 2.235 mm | 13 mm | |
| A-89 | 2.261 mm | 13 mm | |
| A-90 | 2.286 mm | 13 mm | |
| A-91 | 2.311 mm | 13 mm | |
| A-92 | 2.337 mm | 13 mm | |
| A-93 | 2.362 mm | 13 mm | |
| A-94 | 2.388 mm | 13 mm | |
| A-95 | 2.413 mm | 13 mm | |
| A-96 | 2.438 mm | 13 mm | |
| A-97 | 2.464 mm | 13 mm | |
| A-98 | 2.489 mm | 13 mm | |
| A-99 | 2.515 mm | 13 mm | |
| A-100 | 2.540 mm | 13 mm | |
| A-101 | 2.565 mm | 13 mm | |
| A-102 | 2.591 mm | 13 mm | |
| A-103 | 2.616 mm | 13 mm | |
| A-104 | 2.642 mm | 13 mm | |
| A-105 | 2.667 mm | 13 mm | |
| A-106 | 2.692 mm | 13 mm | |
| A-107 | 2.718 mm | 13 mm | |
| A-108 | 2.743 mm | 13 mm | |
| A-109 | 2.769 mm | 13 mm | |
| A-110 | 2.794 mm | 13 mm | |
| A-111 | 2.819 mm | 13 mm | |
| A-112 | 2.845 mm | 13 mm | |
| A-113 | 2.870 mm | 13 mm | |
| A-114 | 2.896 mm | 13 mm | |
| A-115 | 2.921 mm | 13 mm | |
| A-116 | 2.946 mm | 13 mm | |
| A-117 | 2.972 mm | 13 mm | |
| A-118 | 2.997 mm | 13 mm | |
| A-119 | 3.023 mm | 13 mm | |
| A-120 | 3.048 mm | 13 mm | |
| A-121 | 3.073 mm | 13 mm | |
| A-122 | 3.099 mm | 13 mm | |
| A-123 | 3.124 mm | 13 mm | |
| A-124 | 3.150 mm | 13 mm | |
| A-125 | 3.175 mm | 13 mm | |
| A-126 | 3.200 mm | 13 mm | |
| A-127 | 3.226 mm | 13 mm | |
| A-128 | 3.251 mm | 13 mm | |
| A-129 | 3.277 mm | 13 mm | |
| A-130 | 3.302 mm | 13 mm | |
| A-131 | 3.327 mm | 13 mm | |
| A-132 | 3.353 mm | 13 mm | |
| A-133 | 3.378 mm | 13 mm | |
| A-134 | 3.404 mm | 13 mm | |
| A-135 | 3.429 mm | 13 mm | |
| A-136 | 3.454 mm | 13 mm | |
| A-137 | 3.480 mm | 13 mm | |
| A-138 | 3.505 mm | 13 mm | |
| A-139 | 3.531 mm | 13 mm | |
| A-140 | 3.556 mm | 13 mm | |
| A-144 | 3.658 mm | 13 mm | |
| A-147 | 3.734 mm | 13 mm | |
| A-148 | 3.759 mm | 13 mm | |
| A-150 | 3.810 mm | 13 mm | |
| A-152 | 3.861 mm | 13 mm | |
| A-154 | 3.912 mm | 13 mm | |
| A-155 | 3.937 mm | 13 mm | |
| A-158 | 4.013 mm | 13 mm | |
| A-163 | 4.140 mm | 13 mm | |
| A-173 | 4.394 mm | 13 mm | |
| A-180 | 4.572 mm | 13 mm | |
| A-198 | 5.029 mm | 13 mm |

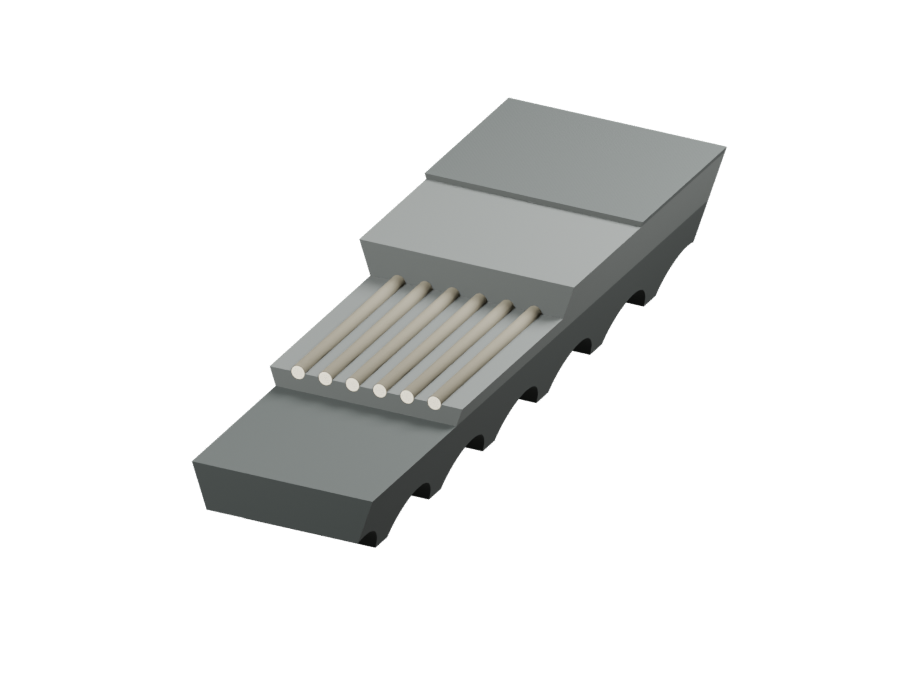

Perfil AX
Ancho 13 mmEspesor 8 mm
| Código | Largo Interior (Li) | Ancho | Acción |
|---|---|---|---|
| AX-15 | 381 mm | 13 mm | |
| AX-20 | 508 mm | 13 mm | |
| AX-21 | 533 mm | 13 mm | |
| AX-22 | 559 mm | 13 mm | |
| AX-23 | 584 mm | 13 mm | |
| AX-24 | 610 mm | 13 mm | |
| AX-25 | 635 mm | 13 mm | |
| AX-26 | 660 mm | 13 mm | |
| AX-27 | 686 mm | 13 mm | |
| AX-28 | 711 mm | 13 mm | |
| AX-29 | 737 mm | 13 mm | |
| AX-30 | 762 mm | 13 mm | |
| AX-31 | 787 mm | 13 mm | |
| AX-32 | 813 mm | 13 mm | |
| AX-33 | 838 mm | 13 mm | |
| AX-34 | 864 mm | 13 mm | |
| AX-35 | 889 mm | 13 mm | |
| AX-36 | 914 mm | 13 mm | |
| AX-37 | 940 mm | 13 mm | |
| AX-38 | 965 mm | 13 mm | |
| AX-39 | 991 mm | 13 mm | |
| AX-40 | 1.016 mm | 13 mm | |
| AX-41 | 1.041 mm | 13 mm | |
| AX-42 | 1.067 mm | 13 mm | |
| AX-43 | 1.092 mm | 13 mm | |
| AX-44 | 1.118 mm | 13 mm | |
| AX-45 | 1.143 mm | 13 mm | |
| AX-46 | 1.168 mm | 13 mm | |
| AX-47 | 1.194 mm | 13 mm | |
| AX-48 | 1.219 mm | 13 mm | |
| AX-49 | 1.245 mm | 13 mm | |
| AX-50 | 1.270 mm | 13 mm | |
| AX-51 | 1.295 mm | 13 mm | |
| AX-52 | 1.321 mm | 13 mm | |
| AX-53 | 1.346 mm | 13 mm | |
| AX-54 | 1.372 mm | 13 mm | |
| AX-55 | 1.397 mm | 13 mm | |
| AX-56 | 1.422 mm | 13 mm | |
| AX-57 | 1.448 mm | 13 mm | |
| AX-58 | 1.473 mm | 13 mm | |
| AX-59 | 1.499 mm | 13 mm | |
| AX-60 | 1.524 mm | 13 mm | |
| AX-61 | 1.549 mm | 13 mm | |
| AX-62 | 1.575 mm | 13 mm | |
| AX-63 | 1.600 mm | 13 mm | |
| AX-64 | 1.626 mm | 13 mm | |
| AX-65 | 1.651 mm | 13 mm | |
| AX-66 | 1.676 mm | 13 mm | |
| AX-67 | 1.702 mm | 13 mm | |
| AX-68 | 1.727 mm | 13 mm | |
| AX-69 | 1.753 mm | 13 mm | |
| AX-70 | 1.778 mm | 13 mm | |
| AX-71 | 1.803 mm | 13 mm | |
| AX-72 | 1.829 mm | 13 mm | |
| AX-73 | 1.854 mm | 13 mm | |
| AX-74 | 1.880 mm | 13 mm | |
| AX-75 | 1.905 mm | 13 mm | |
| AX-76 | 1.930 mm | 13 mm | |
| AX-77 | 1.956 mm | 13 mm | |
| AX-78 | 1.981 mm | 13 mm | |
| AX-79 | 2.007 mm | 13 mm | |
| AX-80 | 2.032 mm | 13 mm | |
| AX-81 | 2.057 mm | 13 mm | |
| AX-82 | 2.083 mm | 13 mm | |
| AX-83 | 2.108 mm | 13 mm | |
| AX-84 | 2.134 mm | 13 mm | |
| AX-85 | 2.159 mm | 13 mm | |
| AX-86 | 2.184 mm | 13 mm | |
| AX-87 | 2.210 mm | 13 mm | |
| AX-88 | 2.235 mm | 13 mm | |
| AX-89 | 2.261 mm | 13 mm | |
| AX-90 | 2.286 mm | 13 mm | |
| AX-91 | 2.311 mm | 13 mm | |
| AX-92 | 2.337 mm | 13 mm | |
| AX-93 | 2.362 mm | 13 mm | |
| AX-94 | 2.388 mm | 13 mm | |
| AX-95 | 2.413 mm | 13 mm | |
| AX-96 | 2.438 mm | 13 mm | |
| AX-97 | 2.464 mm | 13 mm | |
| AX-98 | 2.489 mm | 13 mm | |
| AX-99 | 2.515 mm | 13 mm | |
| AX-100 | 2.540 mm | 13 mm | |
| AX-101 | 2.565 mm | 13 mm | |
| AX-102 | 2.591 mm | 13 mm | |
| AX-103 | 2.616 mm | 13 mm | |
| AX-104 | 2.642 mm | 13 mm | |
| AX-105 | 2.667 mm | 13 mm | |
| AX-106 | 2.692 mm | 13 mm | |
| AX-107 | 2.718 mm | 13 mm | |
| AX-108 | 2.743 mm | 13 mm | |
| AX-109 | 2.769 mm | 13 mm | |
| AX-110 | 2.794 mm | 13 mm |
Perfil B
Ancho 17 mmEspesor 11 mm
| Código | Largo Interior (Li) | Ancho | Acción |
|---|---|---|---|
| B-19 | 483 mm | 17 mm | |
| B-20 | 508 mm | 17 mm | |
| B-21 | 533 mm | 17 mm | |
| B-22 | 559 mm | 17 mm | |
| B-23 | 584 mm | 17 mm | |
| B-24 | 610 mm | 17 mm | |
| B-25 | 635 mm | 17 mm | |
| B-26 | 660 mm | 17 mm | |
| B-27 | 686 mm | 17 mm | |
| B-28 | 711 mm | 17 mm | |
| B-29 | 737 mm | 17 mm | |
| B-30 | 762 mm | 17 mm | |
| B-31 | 787 mm | 17 mm | |
| B-32 | 813 mm | 17 mm | |
| B-33 | 838 mm | 17 mm | |
| B-34 | 864 mm | 17 mm | |
| B-35 | 889 mm | 17 mm | |
| B-36 | 914 mm | 17 mm | |
| B-37 | 940 mm | 17 mm | |
| B-38 | 965 mm | 17 mm | |
| B-39 | 991 mm | 17 mm | |
| B-40 | 1.016 mm | 17 mm | |
| B-41 | 1.041 mm | 17 mm | |
| B-42 | 1.067 mm | 17 mm | |
| B-43 | 1.092 mm | 17 mm | |
| B-44 | 1.118 mm | 17 mm | |
| B-45 | 1.143 mm | 17 mm | |
| B-46 | 1.168 mm | 17 mm | |
| B-47 | 1.194 mm | 17 mm | |
| B-48 | 1.219 mm | 17 mm | |
| B-49 | 1.245 mm | 17 mm | |
| B-50 | 1.270 mm | 17 mm | |
| B-51 | 1.295 mm | 17 mm | |
| B-52 | 1.321 mm | 17 mm | |
| B-53 | 1.346 mm | 17 mm | |
| B-54 | 1.372 mm | 17 mm | |
| B-55 | 1.397 mm | 17 mm | |
| B-56 | 1.422 mm | 17 mm | |
| B-57 | 1.448 mm | 17 mm | |
| B-58 | 1.473 mm | 17 mm | |
| B-59 | 1.499 mm | 17 mm | |
| B-60 | 1.524 mm | 17 mm | |
| B-61 | 1.549 mm | 17 mm | |
| B-62 | 1.575 mm | 17 mm | |
| B-63 | 1.600 mm | 17 mm | |
| B-64 | 1.626 mm | 17 mm | |
| B-65 | 1.651 mm | 17 mm | |
| B-66 | 1.676 mm | 17 mm | |
| B-67 | 1.702 mm | 17 mm | |
| B-68 | 1.727 mm | 17 mm | |
| B-69 | 1.753 mm | 17 mm | |
| B-70 | 1.778 mm | 17 mm | |
| B-71 | 1.803 mm | 17 mm | |
| B-72 | 1.829 mm | 17 mm | |
| B-73 | 1.854 mm | 17 mm | |
| B-74 | 1.880 mm | 17 mm | |
| B-75 | 1.905 mm | 17 mm | |
| B-76 | 1.930 mm | 17 mm | |
| B-77 | 1.956 mm | 17 mm | |
| B-78 | 1.981 mm | 17 mm | |
| B-79 | 2.007 mm | 17 mm | |
| B-80 | 2.032 mm | 17 mm | |
| B-81 | 2.057 mm | 17 mm | |
| B-82 | 2.083 mm | 17 mm | |
| B-83 | 2.108 mm | 17 mm | |
| B-84 | 2.134 mm | 17 mm | |
| B-85 | 2.159 mm | 17 mm | |
| B-86 | 2.184 mm | 17 mm | |
| B-87 | 2.210 mm | 17 mm | |
| B-88 | 2.235 mm | 17 mm | |
| B-89 | 2.261 mm | 17 mm | |
| B-90 | 2.286 mm | 17 mm | |
| B-91 | 2.311 mm | 17 mm | |
| B-92 | 2.337 mm | 17 mm | |
| B-93 | 2.362 mm | 17 mm | |
| B-94 | 2.388 mm | 17 mm | |
| B-95 | 2.413 mm | 17 mm | |
| B-96 | 2.438 mm | 17 mm | |
| B-97 | 2.464 mm | 17 mm | |
| B-98 | 2.489 mm | 17 mm | |
| B-99 | 2.515 mm | 17 mm | |
| B-100 | 2.540 mm | 17 mm | |
| B-101 | 2.565 mm | 17 mm | |
| B-102 | 2.591 mm | 17 mm | |
| B-103 | 2.616 mm | 17 mm | |
| B-104 | 2.642 mm | 17 mm | |
| B-105 | 2.667 mm | 17 mm | |
| B-106 | 2.692 mm | 17 mm | |
| B-107 | 2.718 mm | 17 mm | |
| B-108 | 2.743 mm | 17 mm | |
| B-109 | 2.769 mm | 17 mm | |
| B-110 | 2.794 mm | 17 mm | |
| B-111 | 2.819 mm | 17 mm | |
| B-112 | 2.845 mm | 17 mm | |
| B-113 | 2.870 mm | 17 mm | |
| B-114 | 2.896 mm | 17 mm | |
| B-115 | 2.921 mm | 17 mm | |
| B-116 | 2.946 mm | 17 mm | |
| B-117 | 2.972 mm | 17 mm | |
| B-118 | 2.997 mm | 17 mm | |
| B-119 | 3.023 mm | 17 mm | |
| B-120 | 3.048 mm | 17 mm | |
| B-121 | 3.073 mm | 17 mm | |
| B-122 | 3.099 mm | 17 mm | |
| B-123 | 3.124 mm | 17 mm | |
| B-124 | 3.150 mm | 17 mm | |
| B-125 | 3.175 mm | 17 mm | |
| B-126 | 3.200 mm | 17 mm | |
| B-127 | 3.226 mm | 17 mm | |
| B-128 | 3.251 mm | 17 mm | |
| B-129 | 3.277 mm | 17 mm | |
| B-130 | 3.302 mm | 17 mm | |
| B-131 | 3.327 mm | 17 mm | |
| B-132 | 3.353 mm | 17 mm | |
| B-133 | 3.378 mm | 17 mm | |
| B-134 | 3.404 mm | 17 mm | |
| B-135 | 3.429 mm | 17 mm | |
| B-136 | 3.454 mm | 17 mm | |
| B-137 | 3.480 mm | 17 mm | |
| B-138 | 3.505 mm | 17 mm | |
| B-139 | 3.531 mm | 17 mm | |
| B-140 | 3.556 mm | 17 mm | |
| B-141 | 3.581 mm | 17 mm | |
| B-142 | 3.607 mm | 17 mm | |
| B-143 | 3.632 mm | 17 mm | |
| B-144 | 3.658 mm | 17 mm | |
| B-145 | 3.683 mm | 17 mm | |
| B-146 | 3.708 mm | 17 mm | |
| B-147 | 3.734 mm | 17 mm | |
| B-148 | 3.759 mm | 17 mm | |
| B-149 | 3.785 mm | 17 mm | |
| B-150 | 3.810 mm | 17 mm | |
| B-151 | 3.835 mm | 17 mm | |
| B-152 | 3.861 mm | 17 mm | |
| B-153 | 3.886 mm | 17 mm | |
| B-154 | 3.912 mm | 17 mm | |
| B-155 | 3.937 mm | 17 mm | |
| B-156 | 3.962 mm | 17 mm | |
| B-157 | 3.988 mm | 17 mm | |
| B-158 | 4.013 mm | 17 mm | |
| B-159 | 4.039 mm | 17 mm | |
| B-160 | 4.064 mm | 17 mm | |
| B-161 | 4.089 mm | 17 mm | |
| B-162 | 4.115 mm | 17 mm | |
| B-163 | 4.140 mm | 17 mm | |
| B-164 | 4.166 mm | 17 mm | |
| B-165 | 4.191 mm | 17 mm | |
| B-166 | 4.216 mm | 17 mm | |
| B-167 | 4.242 mm | 17 mm | |
| B-168 | 4.267 mm | 17 mm | |
| B-169 | 4.293 mm | 17 mm | |
| B-170 | 4.318 mm | 17 mm | |
| B-171 | 4.343 mm | 17 mm | |
| B-172 | 4.369 mm | 17 mm | |
| B-173 | 4.394 mm | 17 mm | |
| B-174 | 4.420 mm | 17 mm | |
| B-175 | 4.445 mm | 17 mm | |
| B-176 | 4.470 mm | 17 mm | |
| B-177 | 4.496 mm | 17 mm | |
| B-178 | 4.521 mm | 17 mm | |
| B-180 | 4.572 mm | 17 mm | |
| B-181 | 4.597 mm | 17 mm | |
| B-182 | 4.623 mm | 17 mm | |
| B-184 | 4.674 mm | 17 mm | |
| B-185 | 4.699 mm | 17 mm | |
| B-186 | 4.724 mm | 17 mm | |
| B-187 | 4.750 mm | 17 mm | |
| B-188 | 4.775 mm | 17 mm | |
| B-189 | 4.801 mm | 17 mm | |
| B-190 | 4.826 mm | 17 mm | |
| B-191 | 4.851 mm | 17 mm | |
| B-192 | 4.877 mm | 17 mm | |
| B-193 | 4.902 mm | 17 mm | |
| B-194 | 4.928 mm | 17 mm | |
| B-195 | 4.953 mm | 17 mm | |
| B-196 | 4.978 mm | 17 mm | |
| B-197 | 5.004 mm | 17 mm | |
| B-198 | 5.029 mm | 17 mm | |
| B-199 | 5.055 mm | 17 mm | |
| B-200 | 5.080 mm | 17 mm | |
| B-205 | 5.207 mm | 17 mm | |
| B-207 | 5.258 mm | 17 mm | |
| B-208 | 5.283 mm | 17 mm | |
| B-209 | 5.309 mm | 17 mm | |
| B-210 | 5.334 mm | 17 mm | |
| B-213 | 5.410 mm | 17 mm | |
| B-215 | 5.461 mm | 17 mm | |
| B-220 | 5.588 mm | 17 mm | |
| B-222 | 5.639 mm | 17 mm | |
| B-223 | 5.664 mm | 17 mm | |
| B-225 | 5.715 mm | 17 mm | |
| B-228 | 5.791 mm | 17 mm | |
| B-230 | 5.842 mm | 17 mm | |
| B-234 | 5.944 mm | 17 mm | |
| B-236 | 5.994 mm | 17 mm | |
| B-237 | 6.020 mm | 17 mm | |
| B-240 | 6.096 mm | 17 mm | |
| B-243 | 6.172 mm | 17 mm | |
| B-246 | 6.248 mm | 17 mm | |
| B-247 | 6.274 mm | 17 mm | |
| B-248 | 6.299 mm | 17 mm | |
| B-250 | 6.350 mm | 17 mm | |
| B-253 | 6.426 mm | 17 mm | |
| B-255 | 6.477 mm | 17 mm | |
| B-260 | 6.604 mm | 17 mm | |
| B-264 | 6.706 mm | 17 mm | |
| B-265 | 6.731 mm | 17 mm | |
| B-268 | 6.807 mm | 17 mm | |
| B-270 | 6.858 mm | 17 mm | |
| B-276 | 7.010 mm | 17 mm | |
| B-280 | 7.112 mm | 17 mm | |
| B-285 | 7.239 mm | 17 mm | |
| B-288 | 7.315 mm | 17 mm | |
| B-295 | 7.493 mm | 17 mm | |
| B-297 | 7.544 mm | 17 mm | |
| B-300 | 7.620 mm | 17 mm | |
| B-312 | 7.925 mm | 17 mm | |
| B-315 | 8.001 mm | 17 mm | |
| B-320 | 8.128 mm | 17 mm | |
| B-330 | 8.382 mm | 17 mm | |
| B-360 | 9.144 mm | 17 mm | |
| B-365 | 9.271 mm | 17 mm | |
| B-370 | 9.398 mm | 17 mm | |
| B-394 | 10.008 mm | 17 mm | |
| B-424 | 10.770 mm | 17 mm | |
| B-433 | 10.998 mm | 17 mm | |
| B-470 | 11.938 mm | 17 mm | |
| B-472 | 11.989 mm | 17 mm | |
| B-512 | 13.005 mm | 17 mm | |
| B-551 | 13.995 mm | 17 mm |
Perfil BX
Ancho 17 mmEspesor 11 mm
| Código | Largo Interior (Li) | Ancho | Acción |
|---|---|---|---|
| BX-15 | 381 mm | 17 mm | |
| BX-21 | 533 mm | 17 mm | |
| BX-22 | 559 mm | 17 mm | |
| BX-23 | 584 mm | 17 mm | |
| BX-24 | 610 mm | 17 mm | |
| BX-25 | 635 mm | 17 mm | |
| BX-26 | 660 mm | 17 mm | |
| BX-27 | 686 mm | 17 mm | |
| BX-28 | 711 mm | 17 mm | |
| BX-29 | 737 mm | 17 mm | |
| BX-30 | 762 mm | 17 mm | |
| BX-31 | 787 mm | 17 mm | |
| BX-32 | 813 mm | 17 mm | |
| BX-33 | 838 mm | 17 mm | |
| BX-34 | 864 mm | 17 mm | |
| BX-35 | 889 mm | 17 mm | |
| BX-36 | 914 mm | 17 mm | |
| BX-37 | 940 mm | 17 mm | |
| BX-38 | 965 mm | 17 mm | |
| BX-39 | 991 mm | 17 mm | |
| BX-40 | 1.016 mm | 17 mm | |
| BX-41 | 1.041 mm | 17 mm | |
| BX-42 | 1.067 mm | 17 mm | |
| BX-43 | 1.092 mm | 17 mm | |
| BX-44 | 1.118 mm | 17 mm | |
| BX-45 | 1.143 mm | 17 mm | |
| BX-46 | 1.168 mm | 17 mm | |
| BX-47 | 1.194 mm | 17 mm | |
| BX-48 | 1.219 mm | 17 mm | |
| BX-49 | 1.245 mm | 17 mm | |
| BX-50 | 1.270 mm | 17 mm | |
| BX-51 | 1.295 mm | 17 mm | |
| BX-52 | 1.321 mm | 17 mm | |
| BX-53 | 1.346 mm | 17 mm | |
| BX-54 | 1.372 mm | 17 mm | |
| BX-55 | 1.397 mm | 17 mm | |
| BX-56 | 1.422 mm | 17 mm | |
| BX-57 | 1.448 mm | 17 mm | |
| BX-58 | 1.473 mm | 17 mm | |
| BX-59 | 1.499 mm | 17 mm | |
| BX-60 | 1.524 mm | 17 mm | |
| BX-61 | 1.549 mm | 17 mm | |
| BX-62 | 1.575 mm | 17 mm | |
| BX-63 | 1.600 mm | 17 mm | |
| BX-64 | 1.626 mm | 17 mm | |
| BX-65 | 1.651 mm | 17 mm | |
| BX-66 | 1.676 mm | 17 mm | |
| BX-67 | 1.702 mm | 17 mm | |
| BX-68 | 1.727 mm | 17 mm | |
| BX-69 | 1.753 mm | 17 mm | |
| BX-70 | 1.778 mm | 17 mm | |
| BX-71 | 1.803 mm | 17 mm | |
| BX-72 | 1.829 mm | 17 mm | |
| BX-73 | 1.854 mm | 17 mm | |
| BX-74 | 1.880 mm | 17 mm | |
| BX-75 | 1.905 mm | 17 mm | |
| BX-76 | 1.930 mm | 17 mm | |
| BX-77 | 1.956 mm | 17 mm | |
| BX-78 | 1.981 mm | 17 mm | |
| BX-79 | 2.007 mm | 17 mm | |
| BX-80 | 2.032 mm | 17 mm | |
| BX-81 | 2.057 mm | 17 mm | |
| BX-82 | 2.083 mm | 17 mm | |
| BX-83 | 2.108 mm | 17 mm | |
| BX-84 | 2.134 mm | 17 mm | |
| BX-85 | 2.159 mm | 17 mm | |
| BX-86 | 2.184 mm | 17 mm | |
| BX-87 | 2.210 mm | 17 mm | |
| BX-88 | 2.235 mm | 17 mm | |
| BX-89 | 2.261 mm | 17 mm | |
| BX-90 | 2.286 mm | 17 mm | |
| BX-91 | 2.311 mm | 17 mm | |
| BX-92 | 2.337 mm | 17 mm | |
| BX-93 | 2.362 mm | 17 mm | |
| BX-94 | 2.388 mm | 17 mm | |
| BX-95 | 2.413 mm | 17 mm | |
| BX-96 | 2.438 mm | 17 mm | |
| BX-97 | 2.464 mm | 17 mm | |
| BX-98 | 2.489 mm | 17 mm | |
| BX-99 | 2.515 mm | 17 mm | |
| BX-100 | 2.540 mm | 17 mm | |
| BX-105 | 2.667 mm | 17 mm | |
| BX-106 | 2.692 mm | 17 mm | |
| BX-107 | 2.718 mm | 17 mm | |
| BX-112 | 2.845 mm | 17 mm | |
| BX-115 | 2.921 mm | 17 mm | |
| BX-117 | 2.972 mm | 17 mm | |
| BX-120 | 3.048 mm | 17 mm | |
| BX-144 | 3.658 mm | 17 mm | |
| BX-155 | 3.937 mm | 17 mm |
Perfil C
Ancho 22 mmEspesor 14 mm
| Código | Largo Interior (Li) | Ancho | Acción |
|---|---|---|---|
| C-35 | 889 mm | 22 mm | |
| C-36 | 914 mm | 22 mm | |
| C-37 | 940 mm | 22 mm | |
| C-38 | 965 mm | 22 mm | |
| C-39 | 991 mm | 22 mm | |
| C-40 | 1.016 mm | 22 mm | |
| C-41 | 1.041 mm | 22 mm | |
| C-42 | 1.067 mm | 22 mm | |
| C-43 | 1.092 mm | 22 mm | |
| C-44 | 1.118 mm | 22 mm | |
| C-45 | 1.143 mm | 22 mm | |
| C-46 | 1.168 mm | 22 mm | |
| C-47 | 1.194 mm | 22 mm | |
| C-48 | 1.219 mm | 22 mm | |
| C-49 | 1.245 mm | 22 mm | |
| C-50 | 1.270 mm | 22 mm | |
| C-51 | 1.295 mm | 22 mm | |
| C-52 | 1.321 mm | 22 mm | |
| C-53 | 1.346 mm | 22 mm | |
| C-54 | 1.372 mm | 22 mm | |
| C-55 | 1.397 mm | 22 mm | |
| C-56 | 1.422 mm | 22 mm | |
| C-57 | 1.448 mm | 22 mm | |
| C-58 | 1.473 mm | 22 mm | |
| C-59 | 1.499 mm | 22 mm | |
| C-60 | 1.524 mm | 22 mm | |
| C-61 | 1.549 mm | 22 mm | |
| C-62 | 1.575 mm | 22 mm | |
| C-63 | 1.600 mm | 22 mm | |
| C-64 | 1.626 mm | 22 mm | |
| C-65 | 1.651 mm | 22 mm | |
| C-66 | 1.676 mm | 22 mm | |
| C-67 | 1.702 mm | 22 mm | |
| C-68 | 1.727 mm | 22 mm | |
| C-69 | 1.753 mm | 22 mm | |
| C-70 | 1.778 mm | 22 mm | |
| C-71 | 1.803 mm | 22 mm | |
| C-72 | 1.829 mm | 22 mm | |
| C-73 | 1.854 mm | 22 mm | |
| C-74 | 1.880 mm | 22 mm | |
| C-75 | 1.905 mm | 22 mm | |
| C-76 | 1.930 mm | 22 mm | |
| C-77 | 1.956 mm | 22 mm | |
| C-78 | 1.981 mm | 22 mm | |
| C-79 | 2.007 mm | 22 mm | |
| C-80 | 2.032 mm | 22 mm | |
| C-81 | 2.057 mm | 22 mm | |
| C-82 | 2.083 mm | 22 mm | |
| C-83 | 2.108 mm | 22 mm | |
| C-84 | 2.134 mm | 22 mm | |
| C-85 | 2.159 mm | 22 mm | |
| C-86 | 2.184 mm | 22 mm | |
| C-87 | 2.210 mm | 22 mm | |
| C-88 | 2.235 mm | 22 mm | |
| C-89 | 2.261 mm | 22 mm | |
| C-90 | 2.286 mm | 22 mm | |
| C-91 | 2.311 mm | 22 mm | |
| C-92 | 2.337 mm | 22 mm | |
| C-93 | 2.362 mm | 22 mm | |
| C-94 | 2.388 mm | 22 mm | |
| C-95 | 2.413 mm | 22 mm | |
| C-96 | 2.438 mm | 22 mm | |
| C-97 | 2.464 mm | 22 mm | |
| C-98 | 2.489 mm | 22 mm | |
| C-99 | 2.515 mm | 22 mm | |
| C-100 | 2.540 mm | 22 mm | |
| C-101 | 2.565 mm | 22 mm | |
| C-102 | 2.591 mm | 22 mm | |
| C-103 | 2.616 mm | 22 mm | |
| C-104 | 2.642 mm | 22 mm | |
| C-106 | 2.692 mm | 22 mm | |
| C-107 | 2.718 mm | 22 mm | |
| C-108 | 2.743 mm | 22 mm | |
| C-109 | 2.769 mm | 22 mm | |
| C-110 | 2.794 mm | 22 mm | |
| C-111 | 2.819 mm | 22 mm | |
| C-112 | 2.845 mm | 22 mm | |
| C-113 | 2.870 mm | 22 mm | |
| C-114 | 2.896 mm | 22 mm | |
| C-115 | 2.921 mm | 22 mm | |
| C-116 | 2.946 mm | 22 mm | |
| C-117 | 2.972 mm | 22 mm | |
| C-118 | 2.997 mm | 22 mm | |
| C-119 | 3.023 mm | 22 mm | |
| C-120 | 3.048 mm | 22 mm | |
| C-121 | 3.073 mm | 22 mm | |
| C-122 | 3.099 mm | 22 mm | |
| C-123 | 3.124 mm | 22 mm | |
| C-124 | 3.150 mm | 22 mm | |
| C-125 | 3.175 mm | 22 mm | |
| C-126 | 3.200 mm | 22 mm | |
| C-127 | 3.226 mm | 22 mm | |
| C-128 | 3.251 mm | 22 mm | |
| C-129 | 3.277 mm | 22 mm | |
| C-130 | 3.302 mm | 22 mm | |
| C-131 | 3.327 mm | 22 mm | |
| C-132 | 3.353 mm | 22 mm | |
| C-133 | 3.378 mm | 22 mm | |
| C-134 | 3.404 mm | 22 mm | |
| C-135 | 3.429 mm | 22 mm | |
| C-136 | 3.454 mm | 22 mm | |
| C-137 | 3.480 mm | 22 mm | |
| C-138 | 3.505 mm | 22 mm | |
| C-139 | 3.531 mm | 22 mm | |
| C-140 | 3.556 mm | 22 mm | |
| C-141 | 3.581 mm | 22 mm | |
| C-142 | 3.607 mm | 22 mm | |
| C-143 | 3.632 mm | 22 mm | |
| C-144 | 3.658 mm | 22 mm | |
| C-145 | 3.683 mm | 22 mm | |
| C-146 | 3.708 mm | 22 mm | |
| C-147 | 3.734 mm | 22 mm | |
| C-148 | 3.759 mm | 22 mm | |
| C-149 | 3.785 mm | 22 mm | |
| C-150 | 3.810 mm | 22 mm | |
| C-151 | 3.835 mm | 22 mm | |
| C-152 | 3.861 mm | 22 mm | |
| C-153 | 3.886 mm | 22 mm | |
| C-154 | 3.912 mm | 22 mm | |
| C-155 | 3.937 mm | 22 mm | |
| C-156 | 3.962 mm | 22 mm | |
| C-157 | 3.988 mm | 22 mm | |
| C-158 | 4.013 mm | 22 mm | |
| C-159 | 4.039 mm | 22 mm | |
| C-160 | 4.064 mm | 22 mm | |
| C-161 | 4.089 mm | 22 mm | |
| C-162 | 4.115 mm | 22 mm | |
| C-163 | 4.140 mm | 22 mm | |
| C-164 | 4.166 mm | 22 mm | |
| C-165 | 4.191 mm | 22 mm | |
| C-166 | 4.216 mm | 22 mm | |
| C-167 | 4.242 mm | 22 mm | |
| C-168 | 4.267 mm | 22 mm | |
| C-169 | 4.293 mm | 22 mm | |
| C-170 | 4.318 mm | 22 mm | |
| C-171 | 4.343 mm | 22 mm | |
| C-172 | 4.369 mm | 22 mm | |
| C-173 | 4.394 mm | 22 mm | |
| C-174 | 4.420 mm | 22 mm | |
| C-175 | 4.445 mm | 22 mm | |
| C-176 | 4.470 mm | 22 mm | |
| C-177 | 4.496 mm | 22 mm | |
| C-178 | 4.521 mm | 22 mm | |
| C-179 | 4.547 mm | 22 mm | |
| C-180 | 4.572 mm | 22 mm | |
| C-181 | 4.597 mm | 22 mm | |
| C-182 | 4.623 mm | 22 mm | |
| C-183 | 4.648 mm | 22 mm | |
| C-184 | 4.674 mm | 22 mm | |
| C-185 | 4.699 mm | 22 mm | |
| C-186 | 4.724 mm | 22 mm | |
| C-187 | 4.750 mm | 22 mm | |
| C-188 | 4.775 mm | 22 mm | |
| C-189 | 4.801 mm | 22 mm | |
| C-190 | 4.826 mm | 22 mm | |
| C-191 | 4.851 mm | 22 mm | |
| C-192 | 4.877 mm | 22 mm | |
| C-193 | 4.902 mm | 22 mm | |
| C-194 | 4.928 mm | 22 mm | |
| C-195 | 4.953 mm | 22 mm | |
| C-196 | 4.978 mm | 22 mm | |
| C-197 | 5.004 mm | 22 mm | |
| C-198 | 5.029 mm | 22 mm | |
| C-199 | 5.055 mm | 22 mm | |
| C-200 | 5.080 mm | 22 mm | |
| C-201 | 5.105 mm | 22 mm | |
| C-202 | 5.131 mm | 22 mm | |
| C-203 | 5.156 mm | 22 mm | |
| C-204 | 5.182 mm | 22 mm | |
| C-205 | 5.207 mm | 22 mm | |
| C-206 | 5.232 mm | 22 mm | |
| C-207 | 5.258 mm | 22 mm | |
| C-208 | 5.283 mm | 22 mm | |
| C-209 | 5.309 mm | 22 mm | |
| C-210 | 5.334 mm | 22 mm | |
| C-212 | 5.385 mm | 22 mm | |
| C-213 | 5.410 mm | 22 mm | |
| C-214 | 5.436 mm | 22 mm | |
| C-215 | 5.461 mm | 22 mm | |
| C-216 | 5.486 mm | 22 mm | |
| C-217 | 5.512 mm | 22 mm | |
| C-218 | 5.537 mm | 22 mm | |
| C-220 | 5.588 mm | 22 mm | |
| C-221 | 5.613 mm | 22 mm | |
| C-222 | 5.639 mm | 22 mm | |
| C-223 | 5.664 mm | 22 mm | |
| C-225 | 5.715 mm | 22 mm | |
| C-226 | 5.740 mm | 22 mm | |
| C-227 | 5.766 mm | 22 mm | |
| C-228 | 5.791 mm | 22 mm | |
| C-230 | 5.842 mm | 22 mm | |
| C-232 | 5.893 mm | 22 mm | |
| C-234 | 5.944 mm | 22 mm | |
| C-235 | 5.969 mm | 22 mm | |
| C-236 | 5.994 mm | 22 mm | |
| C-238 | 6.045 mm | 22 mm | |
| C-240 | 6.096 mm | 22 mm | |
| C-242 | 6.147 mm | 22 mm | |
| C-245 | 6.223 mm | 22 mm | |
| C-248 | 6.299 mm | 22 mm | |
| C-250 | 6.350 mm | 22 mm | |
| C-252 | 6.401 mm | 22 mm | |
| C-255 | 6.477 mm | 22 mm | |
| C-256 | 6.502 mm | 22 mm | |
| C-260 | 6.604 mm | 22 mm | |
| C-263 | 6.680 mm | 22 mm | |
| C-265 | 6.731 mm | 22 mm | |
| C-266 | 6.756 mm | 22 mm | |
| C-270 | 6.858 mm | 22 mm | |
| C-273 | 6.934 mm | 22 mm | |
| C-274 | 6.960 mm | 22 mm | |
| C-275 | 6.985 mm | 22 mm | |
| C-280 | 7.112 mm | 22 mm | |
| C-285 | 7.239 mm | 22 mm | |
| C-290 | 7.366 mm | 22 mm | |
| C-295 | 7.493 mm | 22 mm | |
| C-300 | 7.620 mm | 22 mm | |
| C-303 | 7.696 mm | 22 mm | |
| C-305 | 7.747 mm | 22 mm | |
| C-310 | 7.874 mm | 22 mm | |
| C-311 | 7.899 mm | 22 mm | |
| C-315 | 8.001 mm | 22 mm | |
| C-320 | 8.128 mm | 22 mm | |
| C-325 | 8.255 mm | 22 mm | |
| C-330 | 8.382 mm | 22 mm | |
| C-335 | 8.509 mm | 22 mm | |
| C-340 | 8.636 mm | 22 mm | |
| C-345 | 8.763 mm | 22 mm | |
| C-350 | 8.890 mm | 22 mm | |
| C-355 | 9.017 mm | 22 mm | |
| C-360 | 9.144 mm | 22 mm | |
| C-370 | 9.398 mm | 22 mm | |
| C-380 | 9.652 mm | 22 mm | |
| C-390 | 9.906 mm | 22 mm | |
| C-394 | 10.008 mm | 22 mm | |
| C-400 | 10.160 mm | 22 mm | |
| C-410 | 10.414 mm | 22 mm | |
| C-420 | 10.668 mm | 22 mm | |
| C-424 | 10.770 mm | 22 mm | |
| C-440 | 11.176 mm | 22 mm | |
| C-445 | 11.303 mm | 22 mm | |
| C-455 | 11.557 mm | 22 mm |

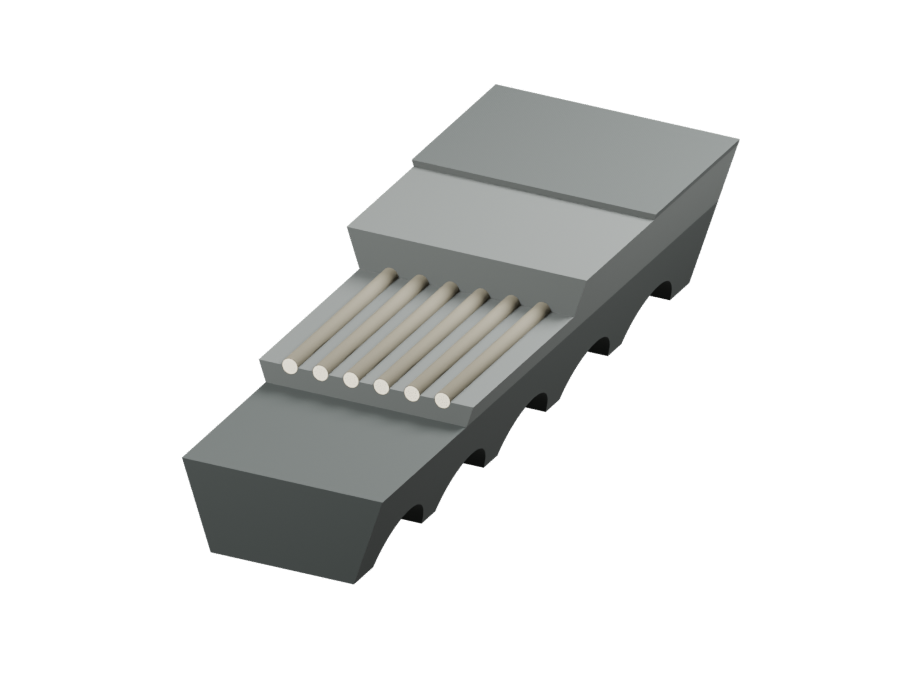

Perfil CX
Ancho 22 mmEspesor 14 mm
| Código | Largo Interior (Li) | Ancho | Acción |
|---|---|---|---|
| CX-36 | 914 mm | 22 mm | |
| CX-38 | 965 mm | 22 mm | |
| CX-39 | 991 mm | 22 mm | |
| CX-40 | 1.016 mm | 22 mm | |
| CX-41 | 1.041 mm | 22 mm | |
| CX-42 | 1.067 mm | 22 mm | |
| CX-43 | 1.092 mm | 22 mm | |
| CX-44 | 1.118 mm | 22 mm | |
| CX-45 | 1.143 mm | 22 mm | |
| CX-46 | 1.168 mm | 22 mm | |
| CX-47 | 1.194 mm | 22 mm | |
| CX-48 | 1.219 mm | 22 mm | |
| CX-49 | 1.245 mm | 22 mm | |
| CX-50 | 1.270 mm | 22 mm | |
| CX-51 | 1.295 mm | 22 mm | |
| CX-52 | 1.321 mm | 22 mm | |
| CX-53 | 1.346 mm | 22 mm | |
| CX-54 | 1.372 mm | 22 mm | |
| CX-55 | 1.397 mm | 22 mm | |
| CX-56 | 1.422 mm | 22 mm | |
| CX-57 | 1.448 mm | 22 mm | |
| CX-58 | 1.473 mm | 22 mm | |
| CX-59 | 1.499 mm | 22 mm | |
| CX-60 | 1.524 mm | 22 mm | |
| CX-61 | 1.549 mm | 22 mm | |
| CX-62 | 1.575 mm | 22 mm | |
| CX-63 | 1.600 mm | 22 mm | |
| CX-64 | 1.626 mm | 22 mm | |
| CX-65 | 1.651 mm | 22 mm | |
| CX-66 | 1.676 mm | 22 mm | |
| CX-67 | 1.702 mm | 22 mm | |
| CX-68 | 1.727 mm | 22 mm | |
| CX-69 | 1.753 mm | 22 mm | |
| CX-70 | 1.778 mm | 22 mm | |
| CX-71 | 1.803 mm | 22 mm | |
| CX-73 | 1.854 mm | 22 mm | |
| CX-74 | 1.880 mm | 22 mm | |
| CX-76 | 1.930 mm | 22 mm | |
| CX-81 | 2.057 mm | 22 mm | |
| CX-82 | 2.083 mm | 22 mm | |
| CX-83 | 2.108 mm | 22 mm | |
| CX-85 | 2.159 mm | 22 mm | |
| CX-87 | 2.210 mm | 22 mm | |
| CX-88 | 2.235 mm | 22 mm | |
| CX-89 | 2.261 mm | 22 mm | |
| CX-90 | 2.286 mm | 22 mm | |
| CX-100 | 2.540 mm | 22 mm | |
| CX-103 | 2.616 mm | 22 mm | |
| CX-113 | 2.870 mm | 22 mm | |
| CX-115 | 2.921 mm | 22 mm | |
| CX-120 | 3.048 mm | 22 mm | |
| CX-133 | 3.378 mm | 22 mm | |
| CX-140 | 3.556 mm | 22 mm |
Perfil D
Ancho 32 mmEspesor 19 mm
| Código | Largo Interior (Li) | Ancho | Acción |
|---|---|---|---|
| D-80 | 2.032 mm | 32 mm | |
| D-81 | 2.057 mm | 32 mm | |
| D-88 | 2.235 mm | 32 mm | |
| D-90 | 2.286 mm | 32 mm | |
| D-94 | 2.388 mm | 32 mm | |
| D-100 | 2.540 mm | 32 mm | |
| D-102 | 2.591 mm | 32 mm | |
| D-103 | 2.616 mm | 32 mm | |
| D-104 | 2.642 mm | 32 mm | |
| D-105 | 2.667 mm | 32 mm | |
| D-107 | 2.718 mm | 32 mm | |
| D-108 | 2.743 mm | 32 mm | |
| D-110 | 2.794 mm | 32 mm | |
| D-112 | 2.845 mm | 32 mm | |
| D-114 | 2.896 mm | 32 mm | |
| D-115 | 2.921 mm | 32 mm | |
| D-116 | 2.946 mm | 32 mm | |
| D-117 | 2.972 mm | 32 mm | |
| D-120 | 3.048 mm | 32 mm | |
| D-121 | 3.073 mm | 32 mm | |
| D-124 | 3.150 mm | 32 mm | |
| D-125 | 3.175 mm | 32 mm | |
| D-126 | 3.200 mm | 32 mm | |
| D-128 | 3.251 mm | 32 mm | |
| D-129 | 3.277 mm | 32 mm | |
| D-130 | 3.302 mm | 32 mm | |
| D-131 | 3.327 mm | 32 mm | |
| D-132 | 3.353 mm | 32 mm | |
| D-134 | 3.404 mm | 32 mm | |
| D-136 | 3.454 mm | 32 mm | |
| D-138 | 3.505 mm | 32 mm | |
| D-140 | 3.556 mm | 32 mm | |
| D-142 | 3.607 mm | 32 mm | |
| D-144 | 3.658 mm | 32 mm | |
| D-146 | 3.708 mm | 32 mm | |
| D-148 | 3.759 mm | 32 mm | |
| D-149 | 3.785 mm | 32 mm | |
| D-150 | 3.810 mm | 32 mm | |
| D-154 | 3.912 mm | 32 mm | |
| D-156 | 3.962 mm | 32 mm | |
| D-158 | 4.013 mm | 32 mm | |
| D-160 | 4.064 mm | 32 mm | |
| D-161 | 4.089 mm | 32 mm | |
| D-162 | 4.115 mm | 32 mm | |
| D-163 | 4.140 mm | 32 mm | |
| D-164 | 4.166 mm | 32 mm | |
| D-165 | 4.191 mm | 32 mm | |
| D-168 | 4.267 mm | 32 mm | |
| D-173 | 4.394 mm | 32 mm | |
| D-175 | 4.445 mm | 32 mm | |
| D-176 | 4.470 mm | 32 mm | |
| D-178 | 4.521 mm | 32 mm | |
| D-180 | 4.572 mm | 32 mm | |
| D-185 | 4.699 mm | 32 mm | |
| D-187 | 4.750 mm | 32 mm | |
| D-190 | 4.826 mm | 32 mm | |
| D-195 | 4.953 mm | 32 mm | |
| D-197 | 5.004 mm | 32 mm | |
| D-198 | 5.029 mm | 32 mm | |
| D-205 | 5.207 mm | 32 mm | |
| D-208 | 5.283 mm | 32 mm | |
| D-210 | 5.334 mm | 32 mm | |
| D-215 | 5.461 mm | 32 mm | |
| D-220 | 5.588 mm | 32 mm | |
| D-225 | 5.715 mm | 32 mm | |
| D-230 | 5.842 mm | 32 mm | |
| D-236 | 5.994 mm | 32 mm | |
| D-240 | 6.096 mm | 32 mm | |
| D-245 | 6.223 mm | 32 mm | |
| D-250 | 6.350 mm | 32 mm | |
| D-255 | 6.477 mm | 32 mm | |
| D-270 | 6.858 mm | 32 mm | |
| D-280 | 7.112 mm | 32 mm | |
| D-285 | 7.239 mm | 32 mm | |
| D-300 | 7.620 mm | 32 mm | |
| D-315 | 8.001 mm | 32 mm | |
| D-330 | 8.382 mm | 32 mm | |
| D-335 | 8.509 mm | 32 mm | |
| D-340 | 8.636 mm | 32 mm | |
| D-345 | 8.763 mm | 32 mm | |
| D-360 | 9.144 mm | 32 mm | |
| D-380 | 9.652 mm | 32 mm | |
| D-390 | 9.906 mm | 32 mm | |
| D-410 | 10.414 mm | 32 mm | |
| D-420 | 10.668 mm | 32 mm | |
| D-440 | 11.176 mm | 32 mm | |
| D-450 | 11.430 mm | 32 mm |
Perfil E
Ancho 38 mmEspesor 23 mm
| Código | Largo Interior (Li) | Ancho | Acción |
|---|---|---|---|
| E-180 | 4.572 mm | 38 mm | |
| E-210 | 5.334 mm | 38 mm | |
| E-240 | 6.096 mm | 38 mm | |
| E-330 | 8.382 mm | 38 mm | |
| E-334 | 8.484 mm | 38 mm | |
| E-344 | 8.738 mm | 38 mm | |
| E-370 | 9.398 mm | 38 mm | |
| E-440 | 11.176 mm | 38 mm | |
| E-441 | 11.201 mm | 38 mm |
Las correas en V clásicas son el tipo de transmisión por fricción más utilizado en la industria. Su sección transversal trapezoidal (en forma de V) genera una alta fuerza de agarre en las ranuras de las poleas, evitando el deslizamiento incluso bajo cargas elevadas. Se fabrican en caucho reforzado con fibras de poliéster o aramida, logrando una vida útil típica de 3 a 5 años en condiciones normales de operación. CP Goma distribuye más de 900 medidas en perfiles Z (10 mm), A (13 mm), B (17 mm), C (22 mm), D (32 mm) y E (38 mm), incluyendo las versiones dentadas AX, BX y CX que ofrecen mayor flexibilidad y mejor disipación de calor en aplicaciones de alta velocidad.
